Removal

REMOVAL

1. Disconnect the negative battery cable.
2. Disconnect the APP sensor electrical connectors.

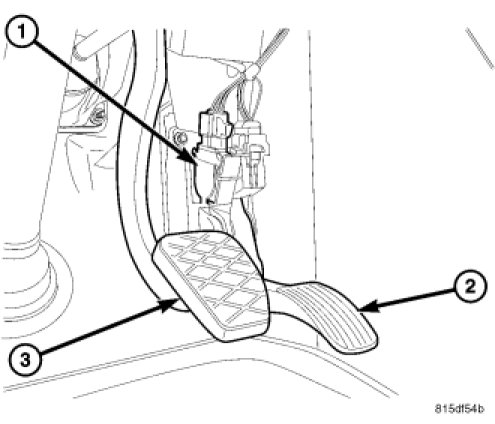

3. Remove the APP sensor fasteners and remove the sensor assembly (1).
