Home >> Freightliner Truck >> 2008 >> Sprinter 2500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> EGR Backpressure Transducer >> Service and Repair >> Installation

Installation







INSTALLATION

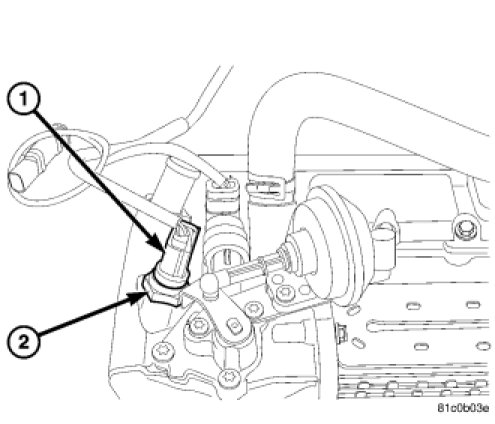

1. Install the EGR back pressure sensor (2).
2. Connect the EGR back pressure sensor harness connector (1).
3. Install the engine cover.
4. Connect the negative battery cable.
