Removal

BULB - FRONT TURN SIGNAL LAMP

WARNING: To avoid serious or fatal injury when working on the xenon headlamp system, be certain to take the proper precautions. The headlamp switch must be in the OFF position. Disconnect and isolate the battery negative cable. There is a risk of death caused by contact with high voltage used in the xenon headlamps. There is a risk of explosion or fire caused by highly flammable materials in the vicinity of damaged xenon bulbs. There is a risk of injury caused by exposure to Ultra Violet (UV) light, a risk of burns caused by high component operating temperatures, a risk of mercury poisoning through glass splinters produced by bursting xenon bulbs. There is also a risk of poisoning caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with the skin. Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on xenon headlamps. Wear insulated safety shoes, safety glasses and protective gloves. Remove flammable materials and ensure sufficient ventilation in the working area.





1. Disconnect and isolate the battery negative cable.

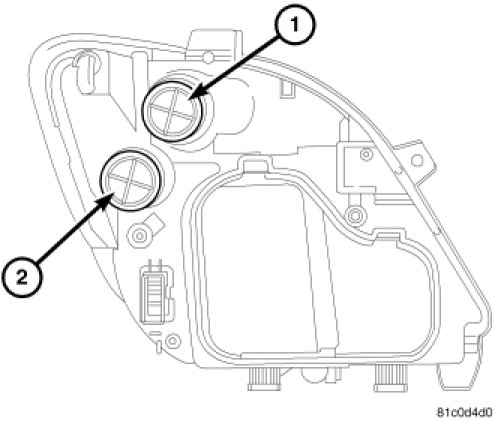

2. Firmly grasp the front turn signal bulb holder (1) on the back of the front lamp unit housing and rotate it counterclockwise about 30 degrees to unlock it.
3. Pull the bulb holder and bulb straight out from the keyed opening in the housing.
4. Push the bulb into the bulb holder slightly, then rotate it counterclockwise about 30 degrees to unlock it.
5. Pull the base of the bulb straight out of the bulb holder.
