Installation

LAMP

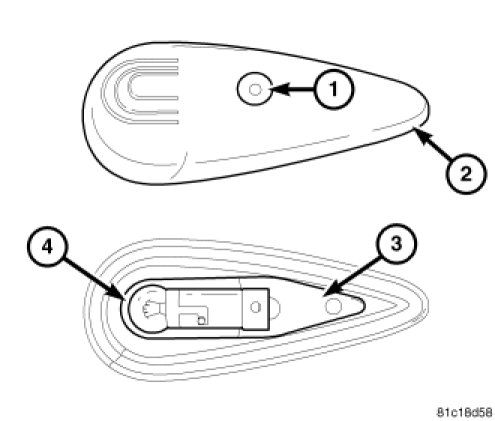

1. Position the identification lamp housing (3) close enough to the vehicle to reconnect the lamp pigtail wire connector to the vehicle wire harness connector.
2. Position the lamp housing to the vehicle.
3. Install and tighten the screw that secures the lamp housing to the vehicle. Tighten the screw securely.
4. Position the identification lamp lens (2) to the lamp housing.
5. Install and tighten the screw (1) that secures the lens to the lamp housing. Tighten the screw securely.
6. Reconnect the battery negative cable.
