Horn: Testing and Inspection

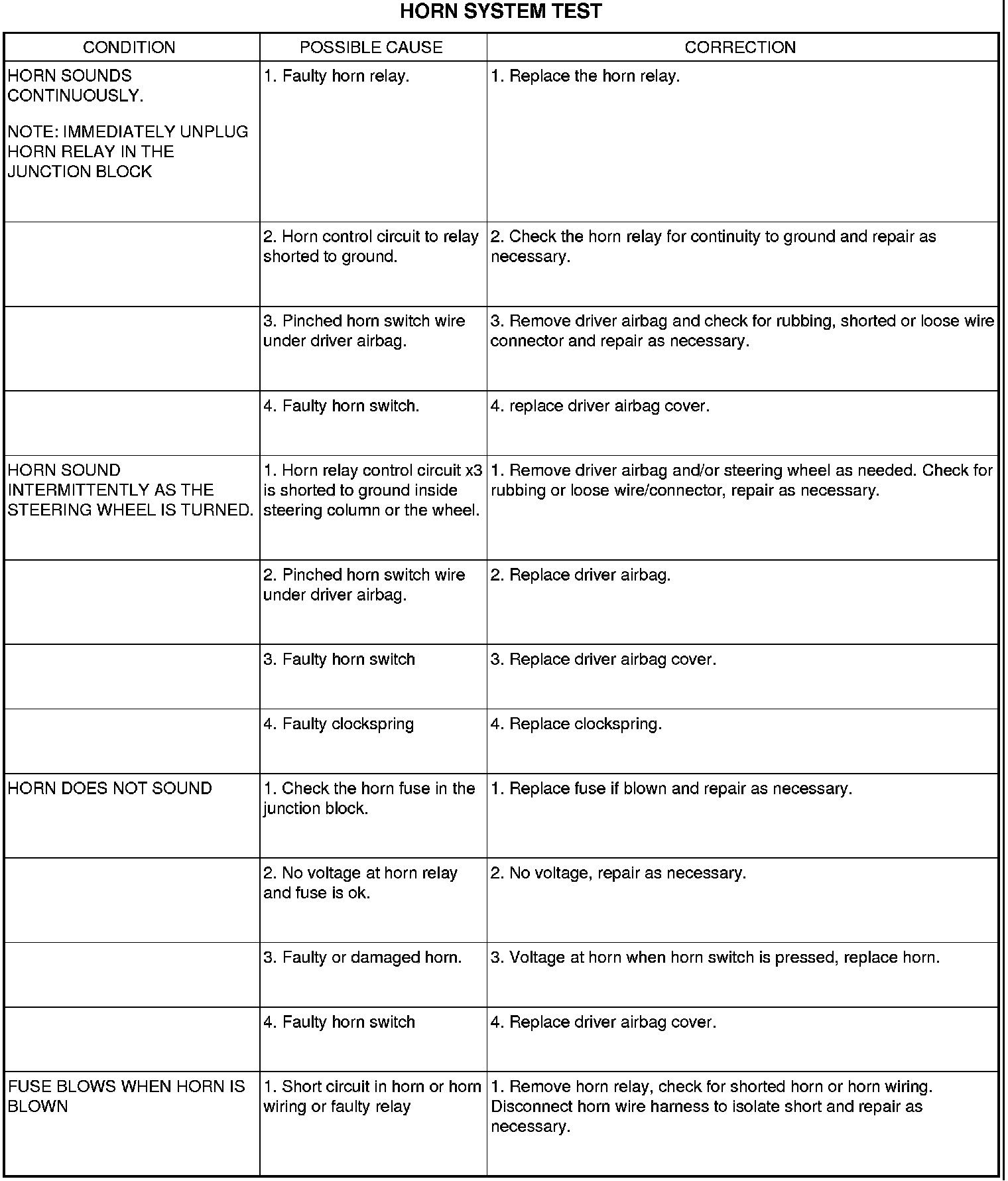

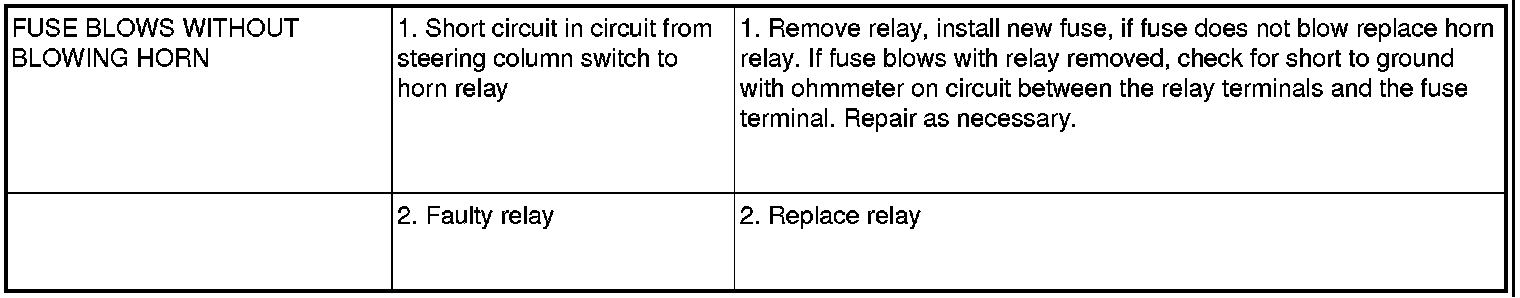

HORN
SYSTEM
CAUTION: Continuous sounding of horns will cause
horn
to fail.
For complete circuit diagrams, refer to the appropriate wiring information.
