Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the front lamp unit from the vehicle. .

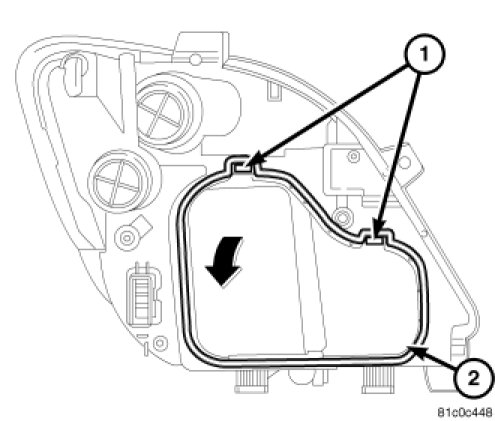

3. Press down the two latches (1) that secure the top of the rear cover (2) to the back of the front lamp unit housing.
4. Swing the rear cover downward (arrow) and disengage the two lower tabs of the cover from the two slotted brackets integral to the back of the lamp housing.

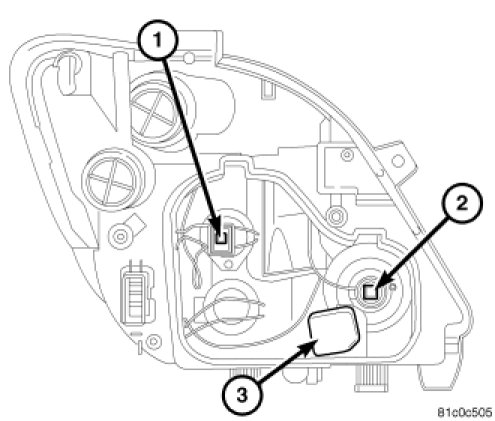

5. Disconnect the front lamp unit wire harness connector from the connector receptacle for the headlamp leveling motor (3).




6. Firmly grasp the motor housing and rotate it counterclockwise about 30 degrees to unlock it from the mounting bracket (2) integral to the front lamp unit housing.
7. Disengage the ball formation on the end of the motor pushrod from the guide (1) on the back of the lamp reflector.
8. Pull the motor straight out from the mounting bracket on the back of the front lamp unit housing.
