Installation

INSTALLATION

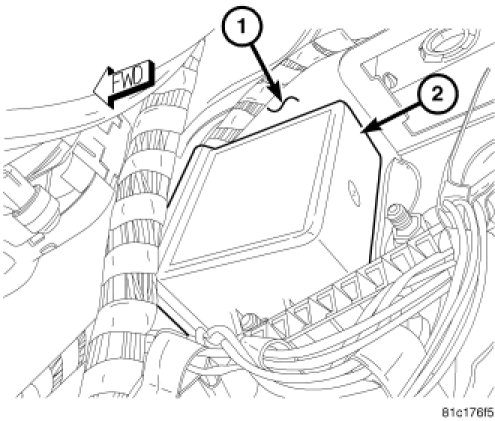

1. Position the Automatic Headlamp Leveling Module (AHLM) (2) close enough to the right cowl side inner panel (1) to reconnect the vehicle wire harness connector to the connector receptacle on the forward-facing side of the AHLM.
2. Position the AHLM onto the two weld studs on the cowl side inner panel.
3. Install and tighten the two nuts that secure the AHLM to the studs on the cowl side inner panel. Tighten the nuts securely.
4. Reinstall the trim onto the right cowl side inner panel. .
5. Reconnect the battery negative cable.
