Description

DESCRIPTION

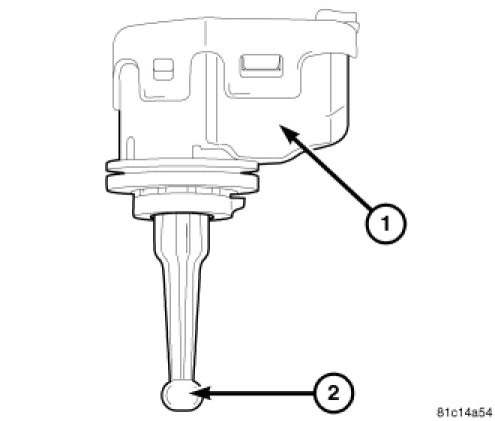

The headlamp leveling motor (1) is located on a bracket on the rear lower surface of each front lamp unit, where it is concealed by the housing rear cover. The motor is encased within a molded plastic housing and is secured by an integral wedge-type mounting boss to a keyed flange on the back of the front lamp unit housing. A rubber seal around the circumference of the mounting boss seals the motor to the lamp housing.

The outside of the motor housing features an integral molded connector. A molded plastic pushrod (2) with a ball formation on its free end extends from the motor mounting boss. Within the motor housing is a 12-volt Direct Current (DC) servo motor, an electronic controller board that includes the motor logic circuits, and an integral screw-drive transmission. The headlamp leveling motor is connected to the vehicle electrical system through a dedicated take out and connector of the front lamp unit wire harness.

The headlamp leveling motor cannot be repaired and, if ineffective or damaged, the entire motor unit must be replaced.
