Removal

BULB - CORNERING LAMP

WARNING: To avoid serious or fatal injury when working on the xenon headlamp system, be certain to take the proper precautions. The headlamp switch must be in the OFF position. Disconnect and isolate the battery negative cable. There is a risk of death caused by contact with high voltage used in the xenon headlamps. There is a risk of explosion or fire caused by highly flammable materials in the vicinity of damaged xenon bulbs. There is a risk of injury caused by exposure to Ultra Violet (UV) light, a risk of burns caused by high component operating temperatures, a risk of mercury poisoning through glass splinters produced by bursting xenon bulbs. There is also a risk of poisoning caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with the skin. Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on xenon headlamps. Wear insulated safety shoes, safety glasses and protective gloves. Remove flammable materials and ensure sufficient ventilation in the working area.





1. Disconnect and isolate the battery negative cable.
2. Press down the two latches (1) that secure the top of the rear cover (2) to the back of the front lamp unit housing.
3. Swing the rear cover downward (arrow) and disengage the two lower tabs of the cover from the two slotted brackets integral to the back of the lamp housing.

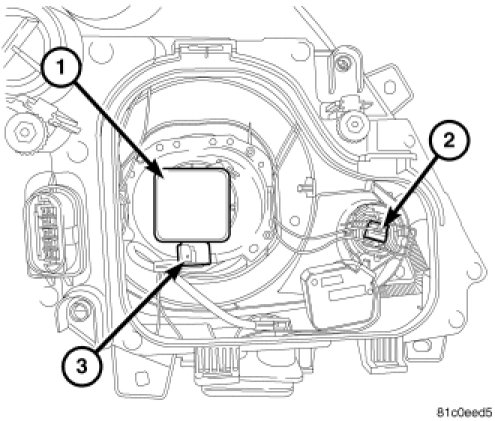

4. Disconnect the front lamp unit wire harness connectors from the cornering lamp bulb base (2).
5. Unclip the cornering lamp bulb wire retainer and pivot the retainer off of the bulb base.
6. Pull the bulb straight out from the keyed opening on the back of the front lamp unit reflector.
