BULB - VAN AND WAGON

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

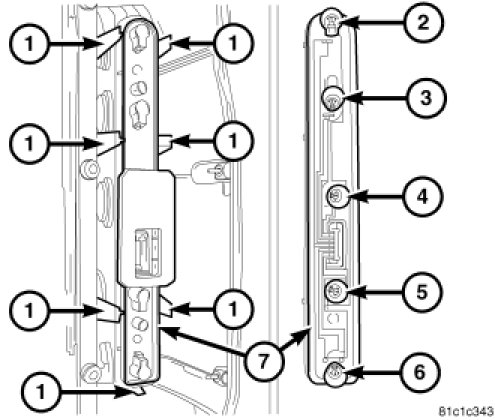

NOTE: The rear lamp unit contains up to five bulbs: brake lamp (2), park/rear side marker (3), backup (4), turn signal (5) and, on the driver side only, a rear fog lamp (6). The service procedures for each bulb are the same, only the bulb sizes and types may differ.

1. Align the base of the bulb (2, 3, 4, 5, or 6) with the appropriate socket in the rear lamp unit socket plate (7).
2. Push the bulb straight into the socket until the base is firmly seated, then rotate the bulb clockwise about 30 degrees to lock it into place.
3. Align the socket plate with the back of the rear lamp unit.
4. Using hand pressure, push the socket plate firmly and evenly into the lamp housing until each of the seven latch features (1) is fully engaged.
5. Reinstall the rear lamp unit onto the vehicle. .
6. Reconnect the battery negative cable.
