Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.
2. Remove the screws that secure the rear condenser cover to the top of the vehicle and remove the cover.

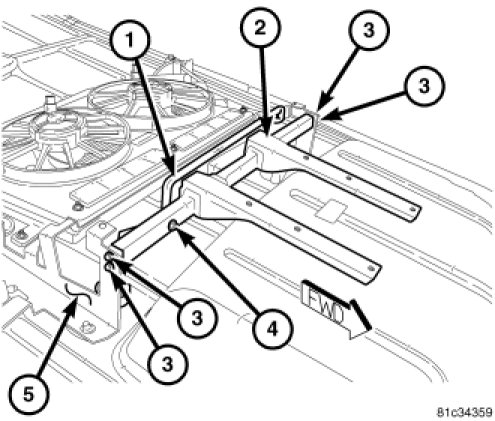

3. Remove the nut and bolt (4) that secure the rear A/C suction line (1) to the rear condenser cover bracket (2).
4. Remove the four bolts (3) that secure the rear condenser cover bracket to the rear condenser bracket (5) and remove the cover bracket.

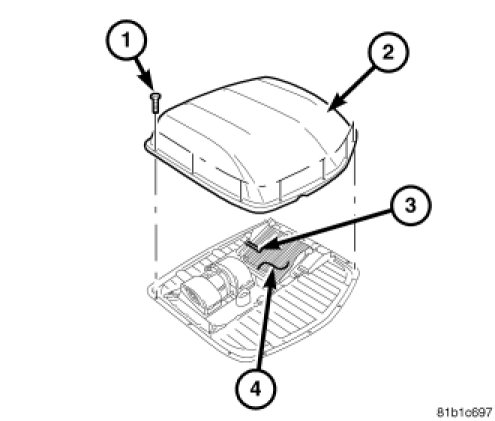

5. Remove the screws (1) that secure the rear evaporator cover and insulator (2) to the top of the vehicle and remove the cover and insulator.
6. Disengage the rear evaporator temperature sensor (3) from the rear evaporator housing (4).
7. Disconnect the wire harness connector from the rear evaporator temperature sensor and remove the sensor from the vehicle.
