Description

DESCRIPTION

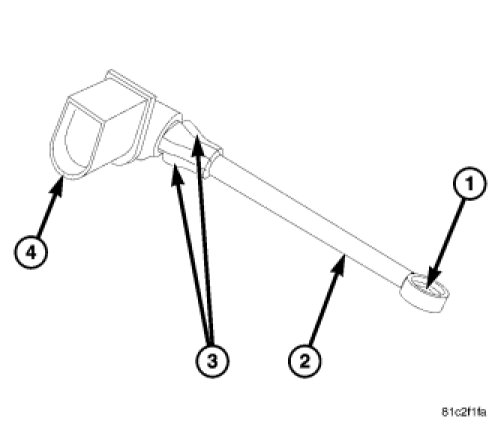

The rear evaporator temperature sensor measures the temperature of the conditioned air downstream of the A/C evaporator. The rear evaporator temperature sensor is an electrical thermistor (1) mounted on the end of a molded plastic housing (2) that is inserted into the side of the rear evaporator housing near the coldest point of the rear A/C evaporator. The rear evaporator temperature sensor is retained in the rear evaporator housing by two integral retaining tabs (3) and is connected to the vehicle electrical system by use of a integral connector with two terminals.

The external location of the rear evaporator temperature sensor allows the sensor to be removed and installed without disturbing the refrigerant in the rear A/C system.
