Front AC

A/C COMPRESSOR

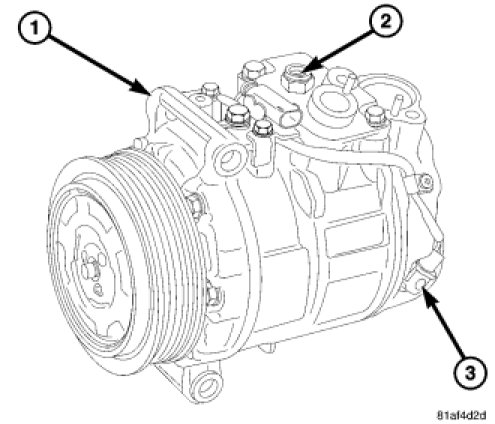

This A/C system uses a Denso 7SEU17C clutchless, variable displacement, swashplate type A/C compressor (1). This A/C compressor has a high pressure relief valve (2) located on the manifold at the top of the compressor, and a control valve (3) located on side of the back cover. The A/C compressor is secured with three bolts to the left front of the engine.

A label identifying the use of R-134a refrigerant and ND-8 pag oil is located on the A/C compressor.
