Home >> Freightliner Truck >> 2008 >> Sprinter 2500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Auxiliary Cabin Heater >> Testing and Inspection >> Heater Unit-Booster

Heater Unit-Booster







HEATER BOOSTER

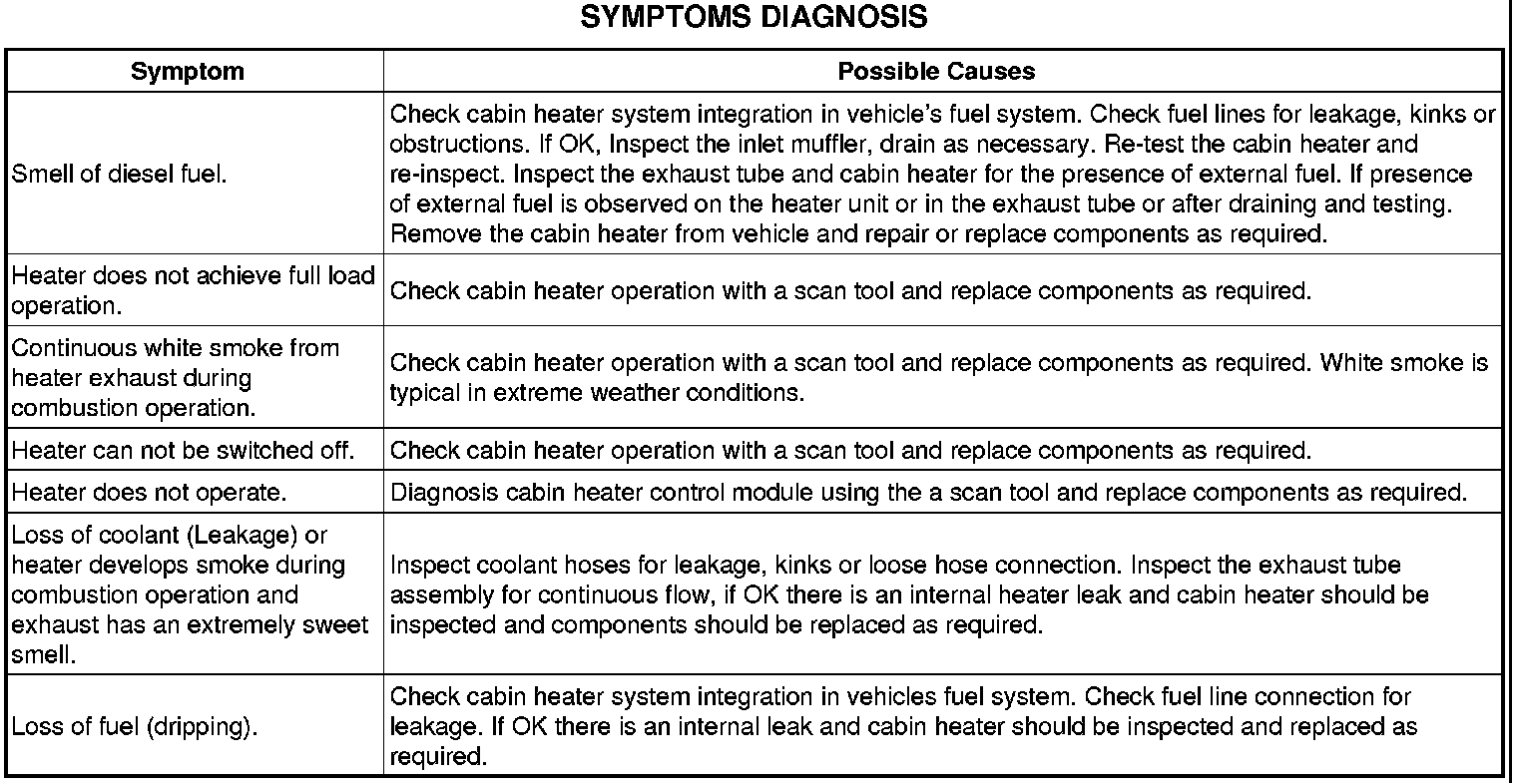

Refer to the Symptoms Diagnosis table for basic checks of the diesel fueled supplemental cabin heater.
