Installation

INSTALLATION

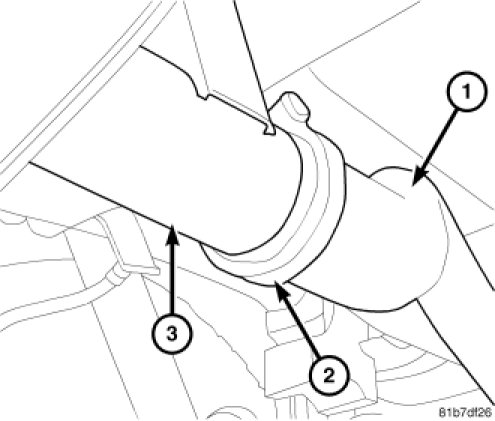

1. Position the tail pipe into the muffler assembly.
2. Install new clamp. Tighten clamp bolt to 47 Nm (35 ft. lbs.).
3. Lower the vehicle.
4. Start the vehicle and inspect for exhaust leaks. Repair exhaust leaks as necessary.
5. Check the exhaust system for contact with the body panels. Make necessary adjustments.
