Procedures

INSPECTION





1. Remove the left cylinder head cover.
2. Remove the right cylinder head cover.

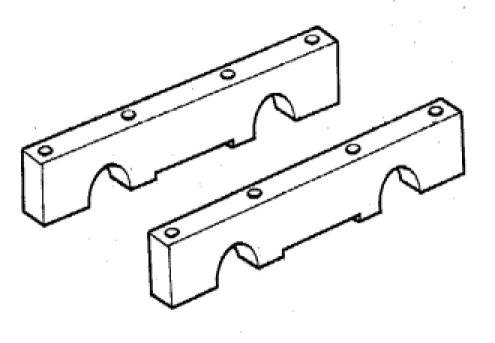

Retainer, Camshafts - 9555

3. Install the camshaft retainers.




4. Make sure that the timing chain cover is fully seated.




5. Rotate the crankshaft clockwise until the crankshaft is at TDC and the camshaft locking pins can be installed.

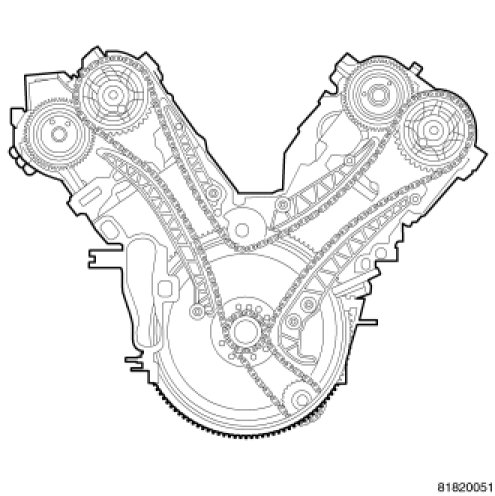

6. With the locking pins installed, turn the crankshaft clockwise until the timing chain is completely tight. If the marks on the crankshaft damper exceed 11 degrees, replace the timing chain.
