Smoke Diagnosis Charts

SMOKE DIAGNOSIS CHARTS

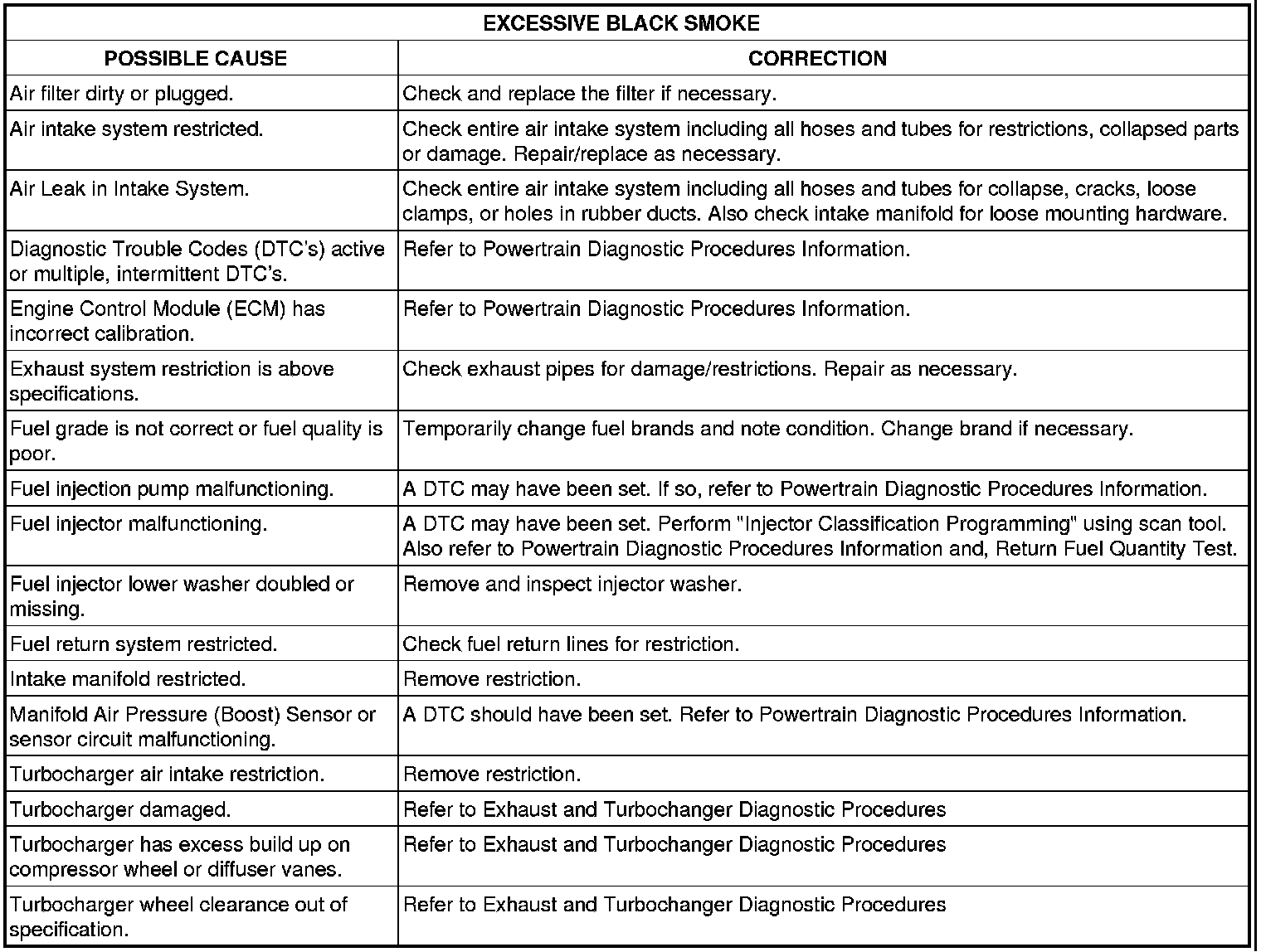

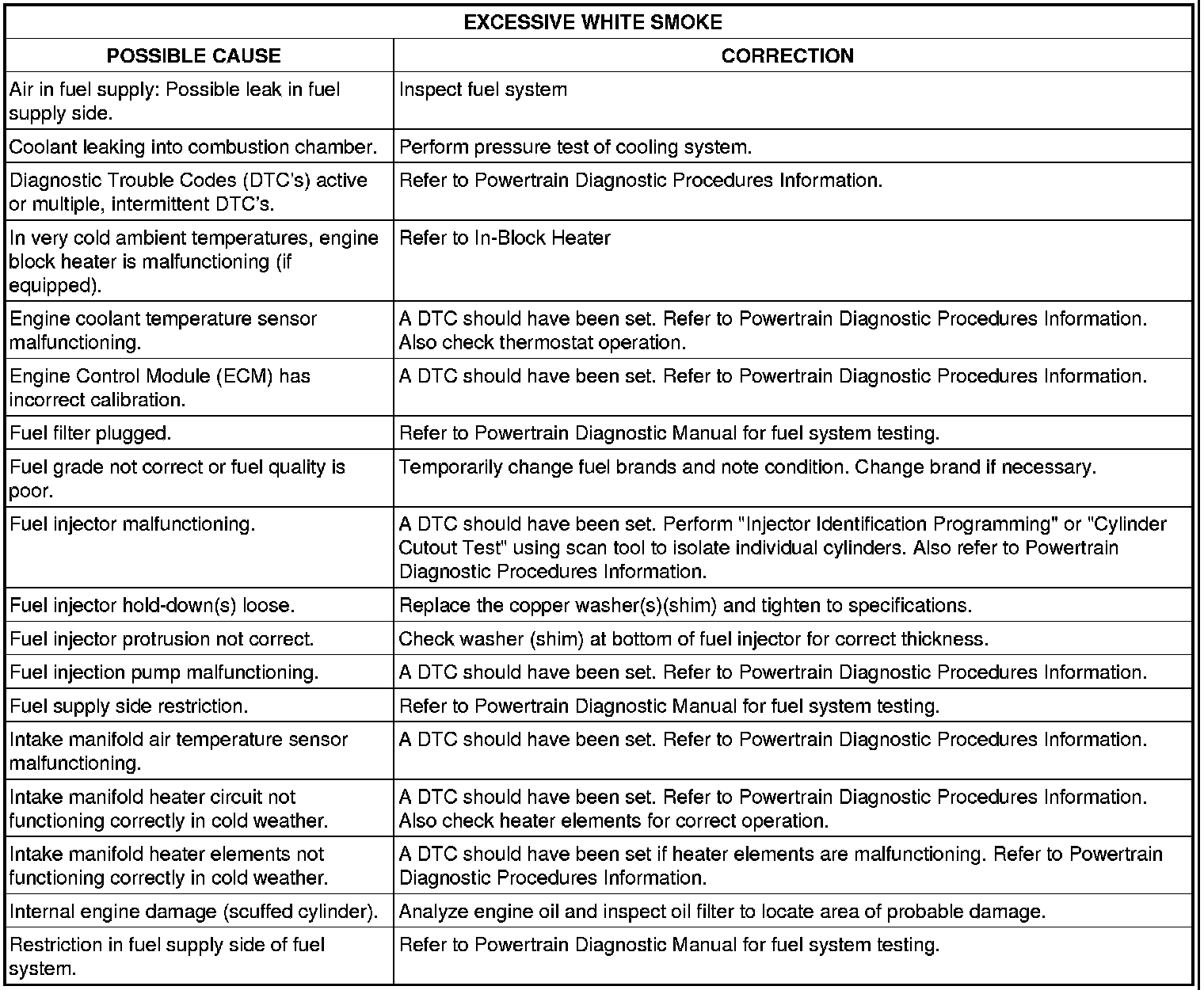

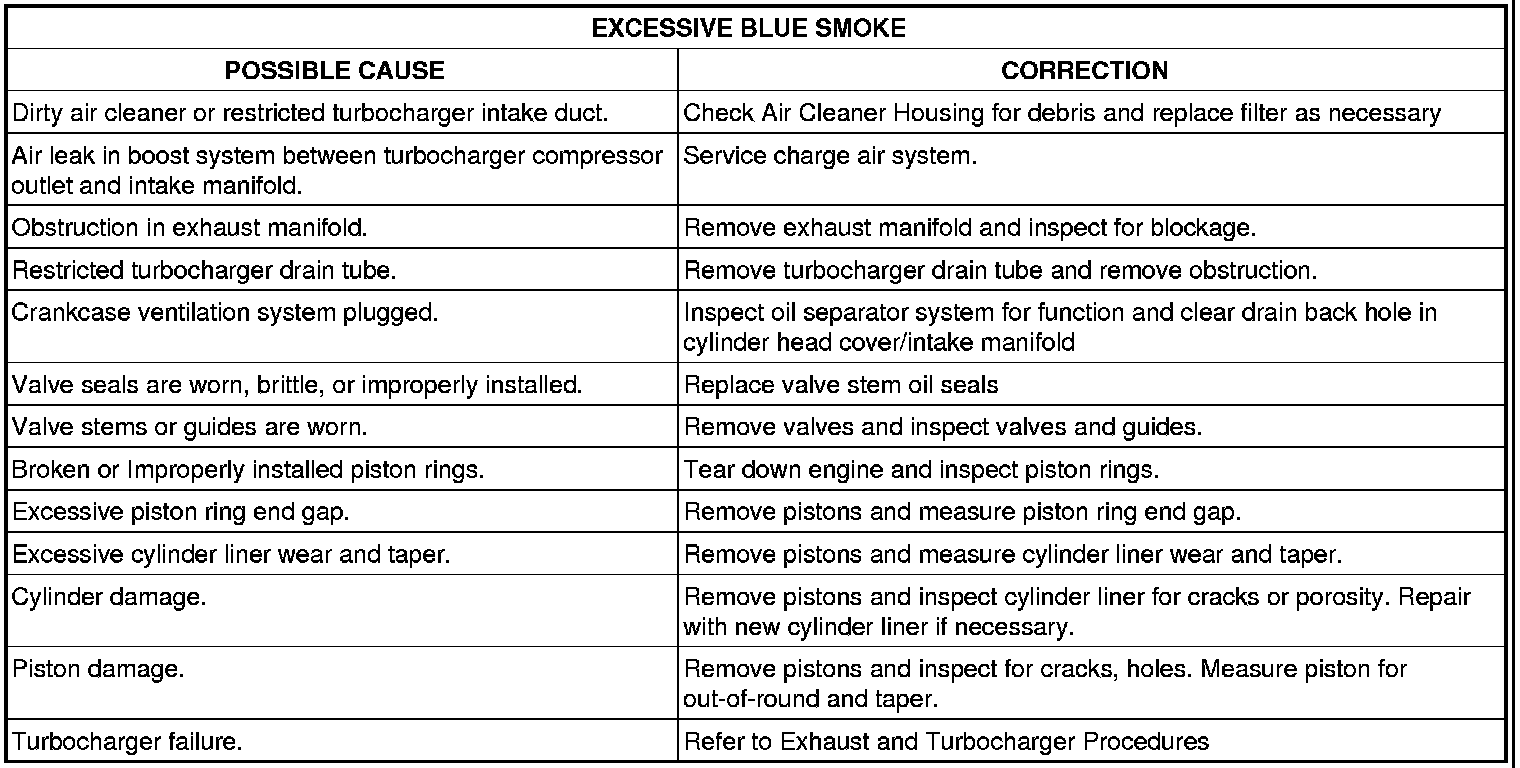

The following charts include possible causes and corrections for excess or abnormal exhaust smoke. Small amounts of exhaust smoke (at certain times) are to be considered normal for a diesel powered engine.
