Removal

REMOVAL





1. Remove the appropriate camshafts. or .

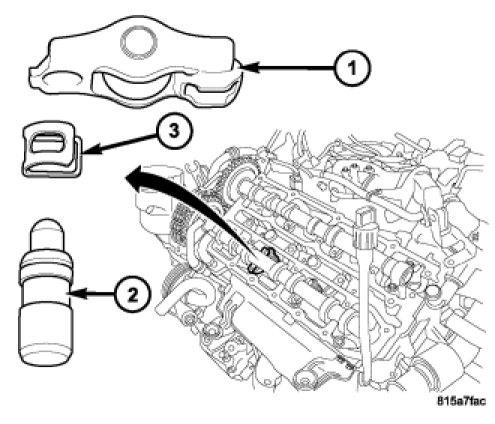

2. Remove the rocker arm (1) and lifter (2) assembly.

NOTE: When the hydraulic lifters are removed from the engine, they must be stored upright and in clean conditions.

3. Separate the rocker arm from the lifter.
