Installation

3.0L DIESEL

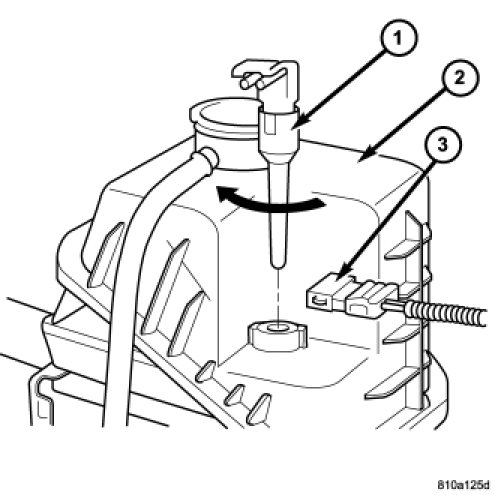

1. Position coolant level sensor with coolant recovery container, press down while turning counterclockwise 90 degrees to seat sensor.
2. Connect coolant level sensor electrical connector.
3. Refill cooling system to proper level Service and Repair
4. Inspect for leaks.
