Group 8W-33 (Vehicle Speed Control System)
Group 8W-33 (Vehicle Speed Control System)

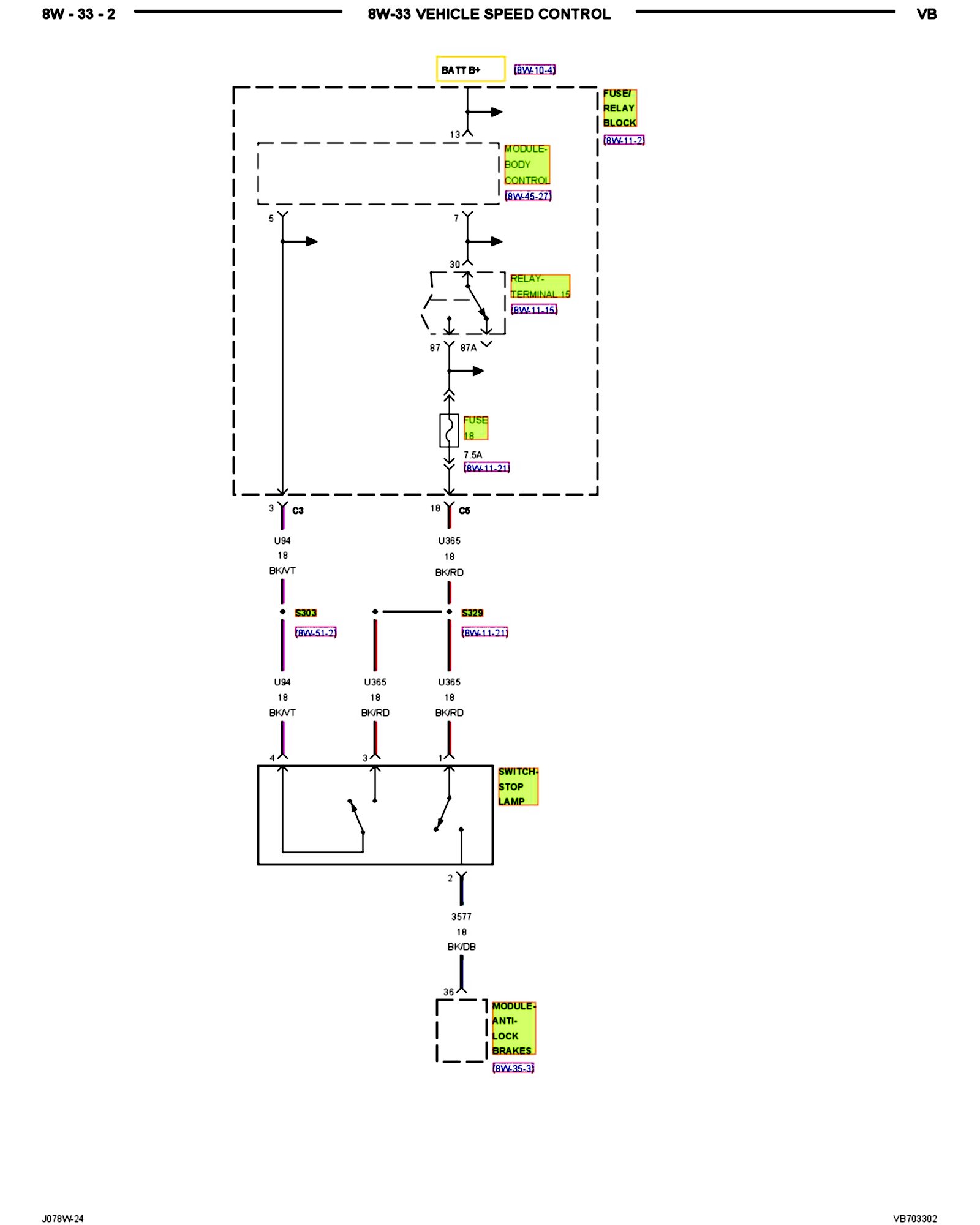

8W-33-2:

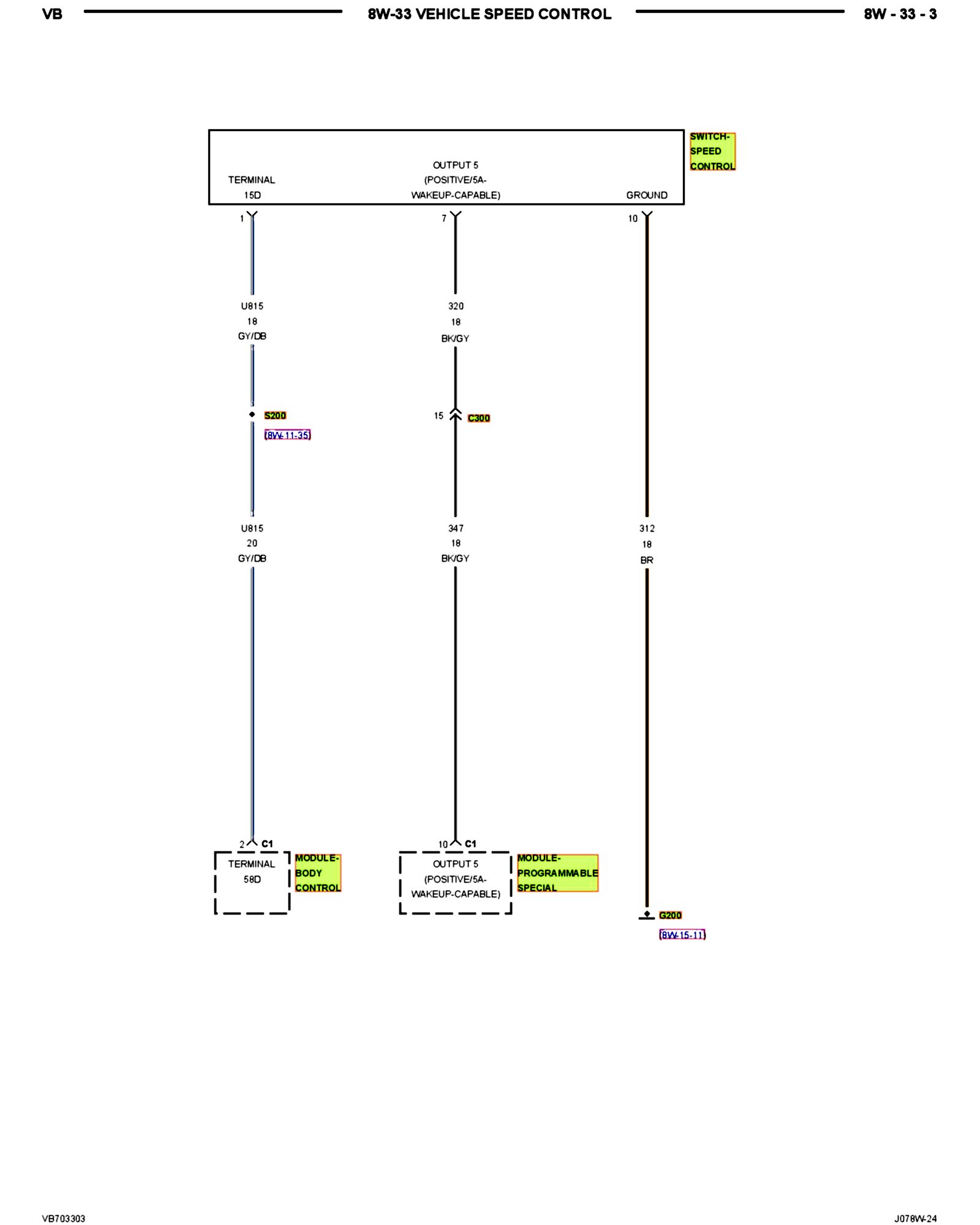

8W-33-3:
