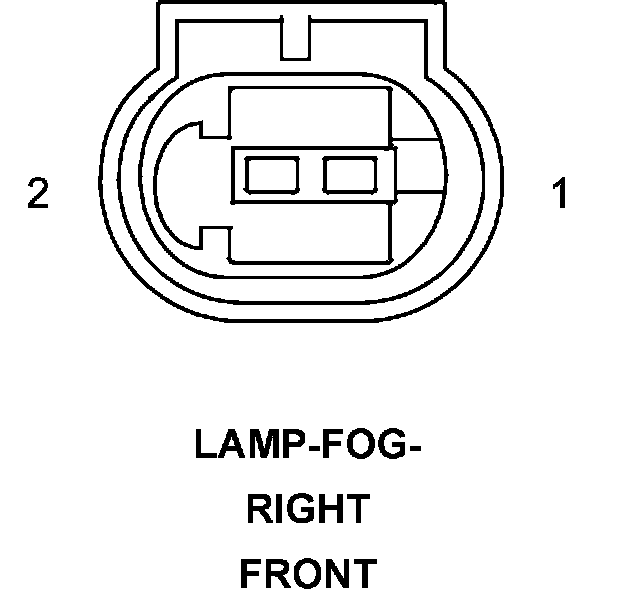

Lamp-Fog-Right Front
Component ID: 251
Component : LAMP-FOG-RIGHT FRONT
Connector:
Name : LAMP-FOG-RIGHT FRONT
Color :
# of pins : 2
Pin Circuit Description
1 69 16GY/YL RIGHT FOG LAMP DRIVER
2 1880 16BR GROUND
Component ID: 251
Component : LAMP-FOG-RIGHT FRONT
Connector:
Name : LAMP-FOG-RIGHT FRONT
Color :
# of pins : 2
Pin Circuit Description
1 69 16GY/YL RIGHT FOG LAMP DRIVER
2 1880 16BR GROUND
