Sensor-Park Assist 5

Component ID: 539

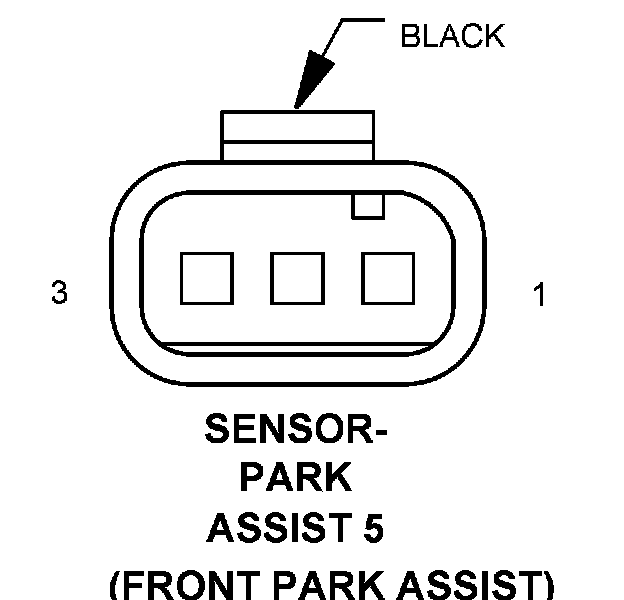

Component : SENSOR-PARK ASSIST 5

Connector:
Name : SENSOR-PARK ASSIST 5
Color : BLACK
# of pins : 3
Qualifier : (FRONT PARK ASSIST)




Pin Circuit Description
1 644 20WT/RD PARK ASSIST SENSOR 5 SIGNAL
2 U363 20BR/DB GROUND
3 U364 20BK/YL FRONT PARK ASSIST SENSOR SUPPLY
