Seat Cushion - Installation

INSTALLATION

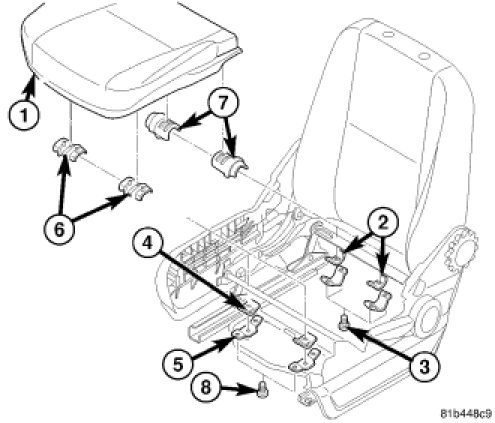

1. Install the upper split bearing shells (6, 7) onto the seat cushion (1).
2. Install the seat cushion (1).
3. Install the lower split bearing shells and brackets (2) and install the bolts (3).
4. Install the lower split bearing shells (4) and brackets (5) and install the bolts (8).
5. Install the seat, .
