Rear View Mirror - Installation
Rear View Mirror - Installation
INSTALLATION
1.
Install the support bracket if necessary, .
2.

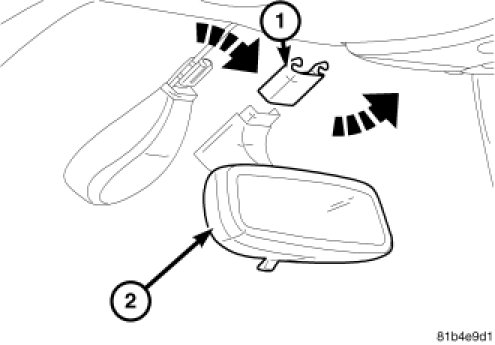

Slide mirror (2) onto support bracket fully.
3.
Slightly lift
headliner
to thread cover (1).
