Installation

INSTALLATION

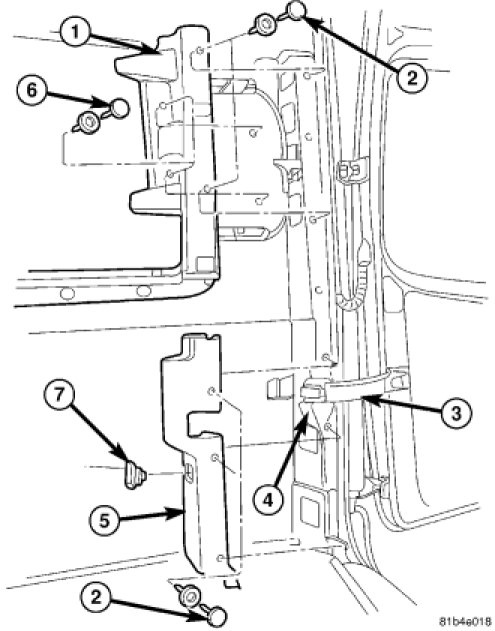

1. Connect the load compartment socket (7) electrical connector.
2. Install the bottom rear pillar panel (5).
3. Secure the door check (3).
4. Install the expansion clips (2) for the lower rear pillar panel (5) and seat fully.
5. Install the rear upper pillar panel (1).
6. Install the expansion clips (2, 6) for the upper rear pillar panel (1) and seat fully.
