Installation

INSTALLATION

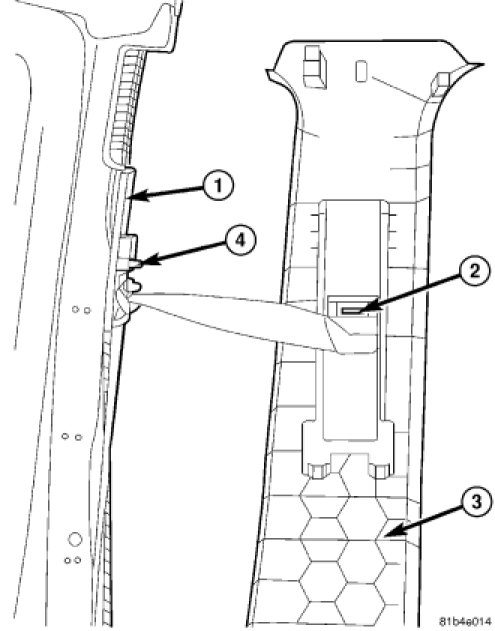

1. Pull the seat belt (3) through the B-pillar (4).




2. The drive plate (4) of the seat belt height adjustment (1) should make contact in the guide (2). Make sure that the door rubber seals are seated correctly.




3. Install the trim (4) onto the B-pillar and seat the clips fully starting from the bottom and moving toward the top.
4. Install the seat belt (3) to the seat, .
5. Install the eyelet (5) or cover.
6. Install the coat hook (1) and seat fully.
