A-Pillar Trim Panel-Installation







INSTALLATION

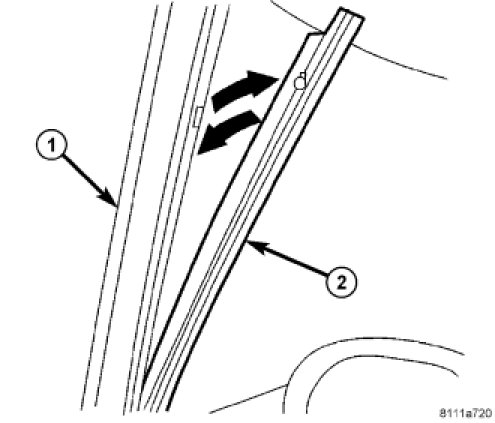

1. Connect the tether to the A-pillar and install the screw.
2. Install the a-pillar trim bottom and push the top in toward a-pillar.
3. Seat the retaining clips fully.
