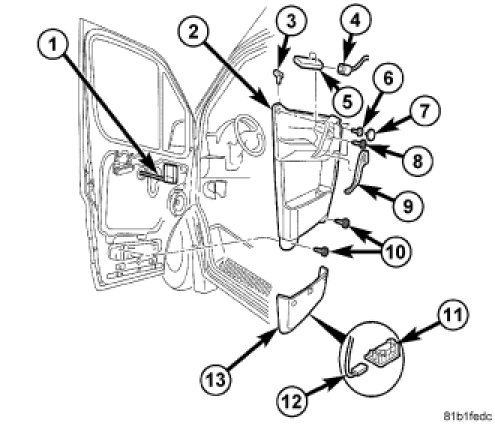

Front Door Trim Panel - Removal

REMOVAL





1. Release the cover (7).
2. Remove the door pocket (13).
3. Remove the bolts (6, 8, 10).
4. Using a trim stick C-4755 or equivalent, release the door trim retainers and pull the trim panel (2) upward over the lock button.
5. Unhook the inside door opener cable (1).
6. Disconnect the electrical connector (4) from the control panel (5).
7. Remove the trim panel (2).
