Bulkhead Trim Panel - Installation

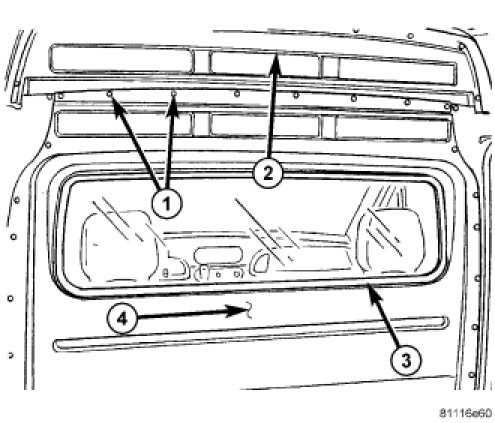

INSTALLATION





1. Install the upper panel and replace rivets.
2. Install the lower panel and replace rivets.
