Headliner - Installation

INSTALLATION

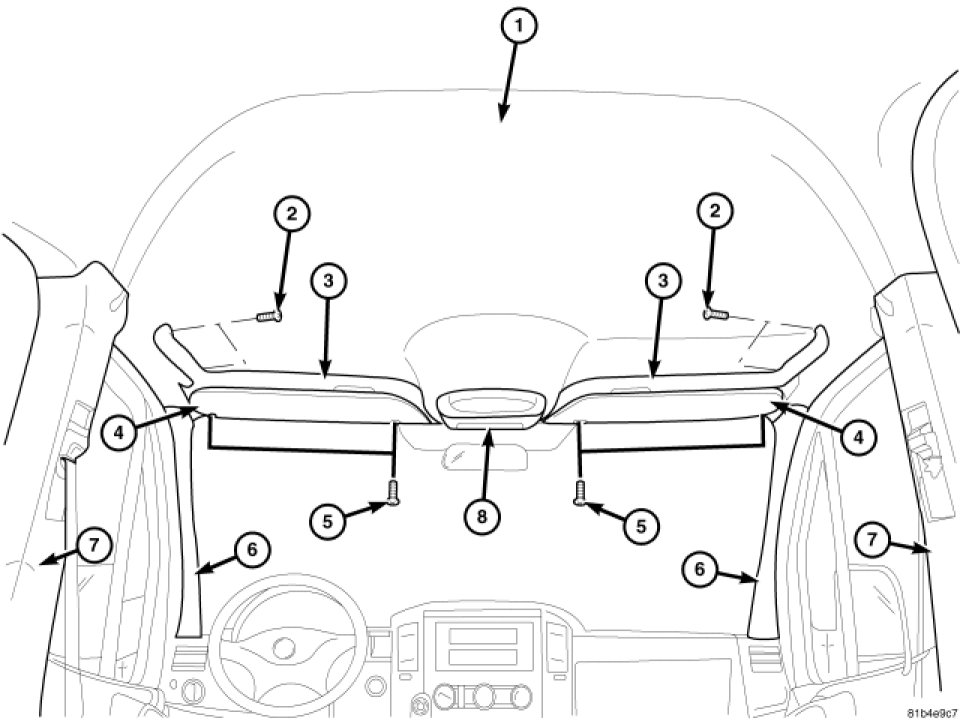

Cab Section





1. Position the headliner in vehicle and seat fully.
2. Install B-pillar trim (7), .
3. Install dome light (6).
4. Install the sun visors (4) and the storage trays (3).
5. Install the A-pillar trim, .
6. Connect battery negative cable.

Number 2 Section

1. Position the headliner in vehicle and seat fully.

NOTE: If vehicle is not equipped with rear air conditioning unit, skip to step 8.

2. Install rear air unit duct work.
3. Install the rear air unit rear cover and install the three screws and push-pins.
4. Connect the electrical connector and install the middle duct work cover.
5. Install the push pin fasteners.
6. Connect the electrical connector and install the front duct work cover.
7. Install the push pin fasteners.
8. Install the second and third row seats.
9. Connect battery negative cable.

Number 3 Section

1. Position the headliner in vehicle and seat fully.

NOTE: If vehicle is not equipped with rear air conditioning unit, skip to step 8.

2. Install rear air unit duct work.
3. Install the rear air unit rear cover and install the three screws and push-pins.
4. Connect the electrical connector and install the middle duct work cover.
5. Install the push pin fasteners.
6. Connect the electrical connector and install the front duct work cover.
7. Install the push pin fasteners.
8. Install the third and fourth row seats.
9. Connect battery negative cable.

Number 4 Section

1. Position the headliner in vehicle and seat fully.

NOTE: If vehicle is not equipped with rear air conditioning unit, skip to step 8.

2. Install rear air unit duct work.
3. Install the rear air unit rear cover and install the three screws and push-pins.
4. Connect the electrical connector and install the middle duct work cover.
5. Install the push pin fasteners.
6. Connect the electrical connector and install the front duct work cover.
7. Install the push pin fasteners.
8. Install the third and fourth row seats.
9. Connect battery negative cable.
