Alarm Horn: Diagrams

Component ID: 557

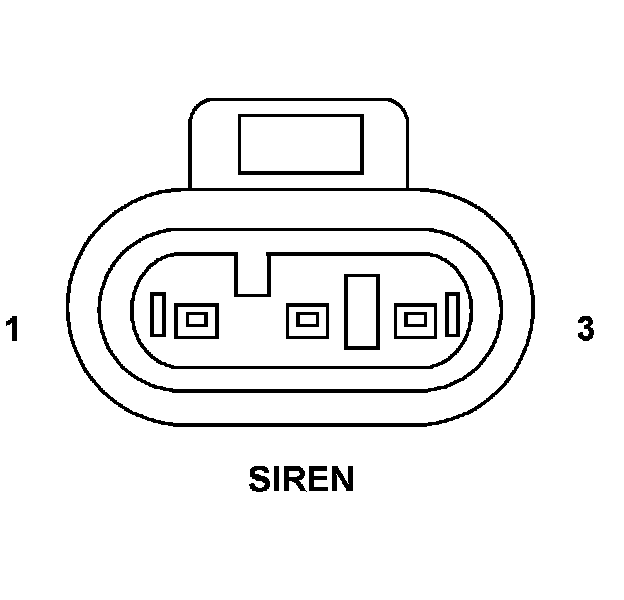

Component : SIREN

Connector:
Name : SIREN
Color :
# of pins : 3




Pin Circuit Description
1 719 20RD/DG SIREN SIGNAL CONTROL
2 718 14BR GROUND
3 717 14RD/DB FUSED B(+)
