U0414

U0414-IMPLAUSIBLE DATA RECEIVED FROM FDCM

For a complete wiring diagram Consult Diagrams/Electrical

Theory of Operation

The messages sent on the CAN bus are distinguished by an identifier (ID). Each CAN ID is defined to contain a certain number of bytes. The Transmission Control Module (TCM) verifies that it has received the proper number of bytes for each ID.

- When Monitored:
Continuously with the ignition on, one valid CAN ID received at least once, and no U0002-CAN Bus Off Performance DTC present.

- Set Condition:
When the TCM detects an incorrect CAN ID from the Final Drive Control Module (FDCM).





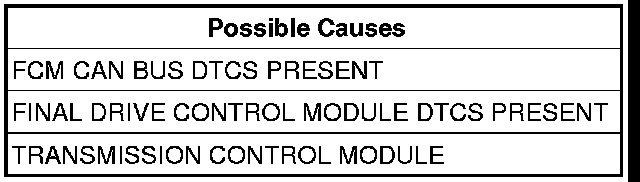

Always perform the NAG1 Pre-Diagnostic Troubleshooting procedure before proceeding. Initial Inspection and Diagnostic Overview

Diagnostic Test

1. CHECK FOR FCM CAN BUS DTCS
With the scan tool, read FCM DTCs.
Are there any FCM CAN BUS DTCs present?

Yes

- Refer to Communications Test for this DTC and/or Manufacturer Code Charts category and perform the appropriate procedure(s).Communications - Verbose Codes
- Perform NAG1 TRANSMISSION VERIFICATION TEST. Verification Tests

No

- Go to 2

2. ELECTRONIC SHIFT MODULE DTCS PRESENT
With the scan tool, read Final Drive Control Module (FDCM) DTCs.
Are there any FDCM DTCs present?

Yes

- Diagnose and repair the DTC(s).
No

- Using the schematics as a guide, check the Transmission Control Module (TCM) pins, terminals, and connectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the TCM.
- Perform NAG1 TRANSMISSION VERIFICATION TEST. Verification Tests
