9000 - 9999: 9709

9709-OUTPUT 9 CONTROL CIRCUIT OPEN (PSM)

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With the Ignition Switch in the on position and the Programmable Special Module (PSM) is awake.

- Set Condition:
This code will set when the Output terminal or corresponding circuit is open for at least 100ms.





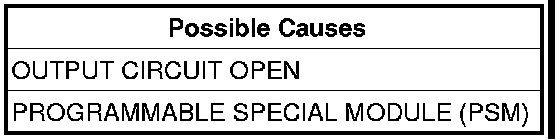

Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION
With the scan tool, record and erase DTC's
Turn the ignition on and activate Output.
With the scan tool, read DTC's.
Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

2. OUTPUT CIRCUIT OPEN
Turn the ignition off.
Disconnect the corresponding component harness connector.
Disconnect the corresponding PSM harness connector.
Measure the resistance of the Output circuit between the corresponding component harness connector and the corresponding PSM harness connector.
Does the ohm meter read open circuit?

Yes

- Repair the Output circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Replace the Programmable Special Module (PSM).
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests
