Steering Column

9352-STEERING ANGLE SENSOR IMPLAUSIBLE RATE OF CHANGE

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
Continuously.

- Set Condition:
The Steering Column Module (SCM) has detected that the Steering Angle Sensor rotational speed has exceeded 3000 degrees per second.

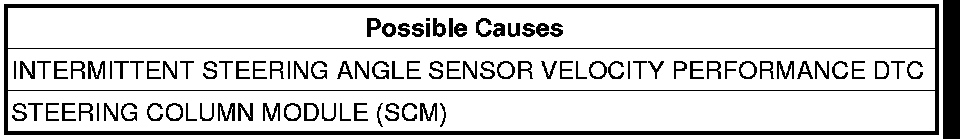

Diagnostic Test

1. DTC IS ACTIVE
NOTE: If B210D-BATTERY VOLTAGE LOW or B210E-BATTERY VOLTAGE HIGH is set along with this DTC, diagnose the battery voltage DTC first.

Ignition on, engine not running.
Turn the steering wheel from stop to stop at least three times.
With the Scan Tool, select View DTCs in the Steering Column Module.
Is the DTC status Active at this time?

Yes

- Replace the Steering Column Module (SCM).
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.
