Steering Column

9333-SELECT SYSTEM SWITCH CIRCUIT STUCK

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
Continuously with the ignition on.

- Set Condition:
The Steering Control Module senses that the Steering Wheel Control Menu Switch is in the Set position for greater than 50 seconds.





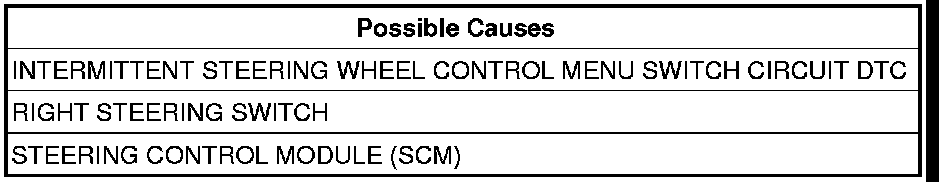

Diagnostic Test

1. DTC IS ACTIVE
NOTE: If U1109-LOST COMMUNICATION WITH LIN STEERING WHEEL CONTROLS is set along with this DTC, diagnose the communication DTC first.

NOTE: If P0562-BATTERY VOLTAGE LOW or P0563-BATTERY VOLTAGE HIGH is set along with this DTC, diagnose the battery voltage DTC first.

Ignition on, engine not running.
With the Scan Tool, select View DTCs in the Steering Control Module.
Is the DTC status Active at this time?

Yes

- Go to 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

2. RIGHT STEERING SWITCH
Turn the ignition off.
Replace the Right Steering Switch.
Turn the ignition on.
Press and release the Menu Switch several times.
With the Scan Tool, Clear Stored DTCs in the Steering Control Module.
With the Scan Tool, select Data Display and view the Menu switch data.
While monitoring the Menu switch data, press and release the Menu Switch several times.
Does the Menu switch data change from Set to Not Set when the switch is pressed and released?

Yes

- Test complete.

No

- Replace the Steering Control Module (SCM).
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.
