Steering Column







9330-(+) (-) SWITCH CIRCUIT STUCK

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
Continuously with the ignition on.

- Set Condition:
The Steering Control Module senses that the Steering Wheel Control Plus (+) Switch or the Steering Wheel Control Minus (-) Switch is in the Set position for greater than 50 seconds.





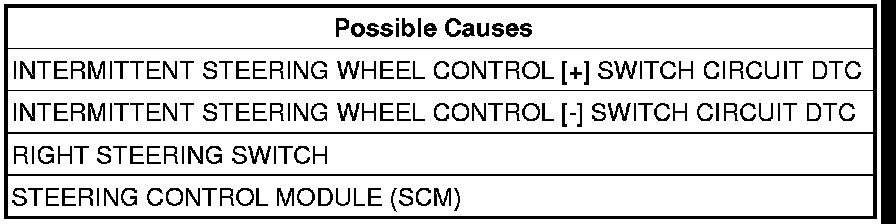

Diagnostic Test

1. DTC IS ACTIVE
NOTE: If U1109-LOST COMMUNICATION WITH LIN STEERING WHEEL CONTROLS is set along with this DTC, diagnose the communication DTC first.

NOTE: If P0562-BATTERY VOLTAGE LOW or P0563-BATTERY VOLTAGE HIGH is set along with this DTC, diagnose the battery voltage DTC first.

Ignition on, engine not running.
With the Scan Tool, select View DTCs in the Steering Control Module.
Is the DTC status Active at this time?

Yes

- Go to 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

2. RIGHT STEERING SWITCH
Turn the ignition off.
Replace the Right Steering Switch.
Turn the ignition on.
Press and release the Plus (+) and Minus (-) Switch several times.
With the Scan Tool, Clear Stored DTCs in the Steering Control Module.
With the Scan Tool, select Data Display and view the Plus (+) switch data.
While monitoring the Plus (+) switch data, press and release the Plus (+) Switch several times.
With the Scan Tool, select Data Display and view the Minus (-) switch data.
While monitoring the Minus (-) switch data, press and release the Minus (-) Switch several times.
Does the Plus (+) switch data and the Minus (-) switch data change from Set to Not Set when the switch is pressed and released?

Yes

- Test complete.

No

- Replace the Steering Control Module (SCM).
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.
