9000 - 9999: 9326

9326-CRUISE CONTROL SENSE CIRCUIT LOW

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
Continuously with the ignition on.

- Set Condition:

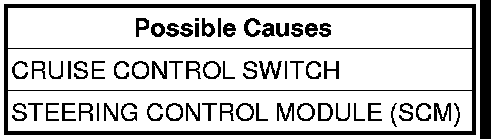

The Steering Control Module (SCM) has detected that Cruise Control Switch position does not agree with actual value.





Diagnostic Test

1. DTC IS ACTIVE
NOTE: If P0562-BATTERY VOLTAGE LOW or P0563-BATTERY VOLTAGE HIGH is set along with this DTC, diagnose the battery voltage DTC first.

Ignition on, engine not running.
With the Scan Tool, select View DTCs in the Steering Control Module.
Is the DTC status Active at this time?

Yes

- Go to 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

2. CRUISE CONTROL SWITCH
Turn the ignition off.
Replace the Cruise Control Switch.
Turn the ignition on.
Move the Speed Control Switch to each position several times.
With the Scan Tool, Clear Stored DTCs in the Steering Control Module.
With the Scan Tool, select View DTCs in the Steering Control Module.
Move the Speed Control Switch to each position several times while monitoring the Scan Tool.
Does this DTC reset?

Yes

- Test Complete.

No

- Replace the Steering Control Module (SCM).
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.
