9000 - 9999: 9208

9208-REAR HEATER COOLANT VALVE POSITION SENSOR CIRCUIT LOW

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
Whenever the module is awake.

- Set Condition:
When the Rear Heater Coolant Valve Position Sensor circuit is shorted to ground.





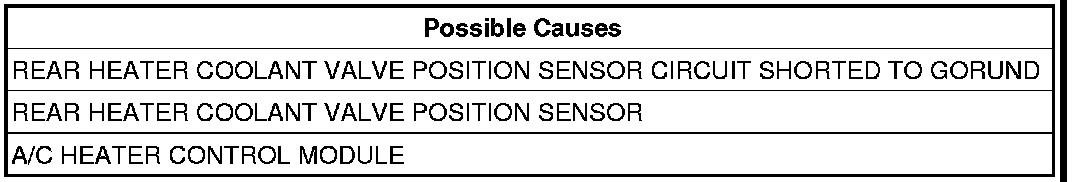

Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION
With the scan tool, record and erase DTC's
Turn the ignition on and wait 30 seconds.
Operate the HVAC system.
With the scan tool, read DTC's.
Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

2. REAR HEATER COOLANT VALVE POSITION SENSOR
Disconnect the Rear Heater Coolant Valve Position sensor.
With the scan tool, record and erase DTC's
Cycle the ignition from on to off three times.
Turn the ignition on.
Operate the HVAC system.
With the scan tool, read DTC's.
Does the scan tool display this DTC as active?

No

- Replace the Rear Heater Coolant Valve Position Sensor.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

Yes

- Go To 3

3. REAR HEATER COOLANT VALVE POSITION SENSOR CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Disconnect the A/C Heater Control Module harness connectors.
Measure the resistance between Ground and the Rear Heater Coolant Valve Position Sensor circuit.
Does the ohm meter read open circuit?

Yes

- Replace the A/C Heater Control Module.Perform BODY VERIFICATION TEST - VER 1.Verification Tests

No

- Repair the Rear Heater Coolant Valve Position Sensor circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests
