Vehicle Theft Security

9097-TOWING SENSOR SELF TEST FAULT

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
During VTSS pre-arm process.

- Set Condition:

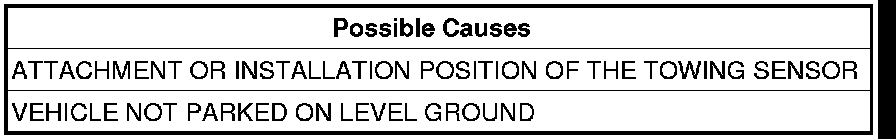

If the Towing Sensor self test routine fails.





Diagnostic Test

1. DETERMINING IF DTC IS CURRENT
With a scan tool, read and record DTC(s).
With the scan tool, clear DTC(s).
Ensure vehicle is parked on level ground.
Turn the ignition off and remove the key from the ignition.
Lock and close all doors to allow the VTSS to go from pre-arm to armed status and wait one minute.
Disarm the VTSS.
Using the scan tool, read DTC(s).
Does the DTC 9097-TOWING SENSOR SELF TEST FAULT reset?

Yes

- Inspect the attachment and installation of the Towing Sensor and correct if necessary. If OK, Replace the Roof Control Module.
- Perform BODY VERIFICATION TEST - VER 1Verification Tests

No

- DTC is not active at this time. Inspect the attachment and installation of the Towing Sensor and correct if necessary. Test complete.
- Perform BODY VERIFICATION TEST - VER 1Verification Tests
