Vehicle Theft Security

9096-REAR INTERIOR SECURITY SENSOR SELF TEST FAILURE

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
During VTSS pre-are process.

- Set Condition:

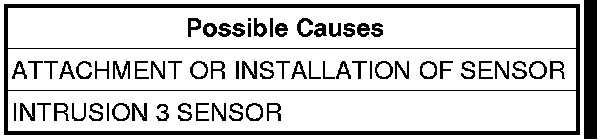

Intrusion Sensor self test failed.





Diagnostic Test

1. DETERMINING IF DTC IS CURRENT
With a scan tool, read and record DTC(s).
With the scan tool, clear DTC(s).
Turn the ignition off and remove the key from the ignition.
Lock and close all doors to allow the VTSS to go from pre-arm to armed status and wait one minute.
Disarm the VTSS.
Using the scan tool, read DTC(s).
Does the DTC 9095-MIDDLE INTERIOR SECURITY SENSOR SELF TEST FAILURE reset?

Yes

- Inspect the attachment and installation of the Intrusion 3 Sensor and correct if necessary. If OK, Replace the Intrusion 3 Sensor.
- Perform BODY VERIFICATION TEST - VER 1Verification Tests

No

- DTC is not active at this time. Inspect the attachment and installation of the Intrusion 3 Sensor and correct if necessary. Test complete.
- Perform BODY VERIFICATION TEST - VER 1Verification Tests
