9000 - 9999: 9069

9069-LEFT VENT WINDOW CONTROL CIRCUIT LOW - BCM





For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
Whenever the module is awake.

- Set Condition:

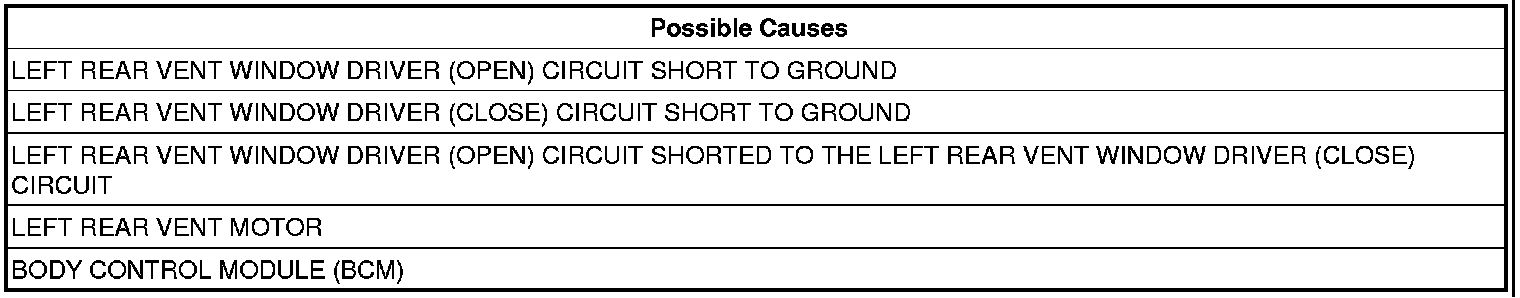

When the left vent window circuit senses an excessive current draw for over 500 ms, this code will set





Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION
Turn the ignition on.
With the scan tool, record and erase DTC's
Operate the left rear vent motor in both directions several times.
Wait 30 seconds.
With the scan tool, read DTC's.
Does the scan tool display 9069-LEFT VENT WINDOW CONTROL CIRCUIT LOW?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests.

2. REAR VENT MOTOR




With the scan tool, erase DTC's.

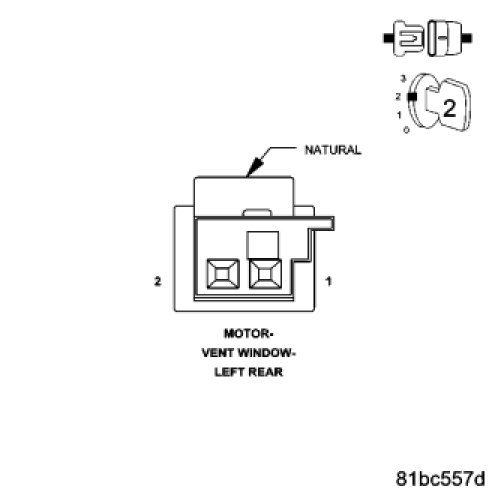

Disconnect the Left Rear Vent Motor connector.
Operate the left rear vent switch in both directions several times.
With the scan tool, read DTC's.
Does the scan tool display 9069-LEFT VENT WINDOW CONTROL CIRCUIT LOW?

No

- Replace the Left Rear Vent Motor.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests.

Yes

- Go To 3

3. LEFT REAR VENT WINDOW DRIVER (OPEN) CIRCUIT SHORT TO GROUND




Turn the ignition off.

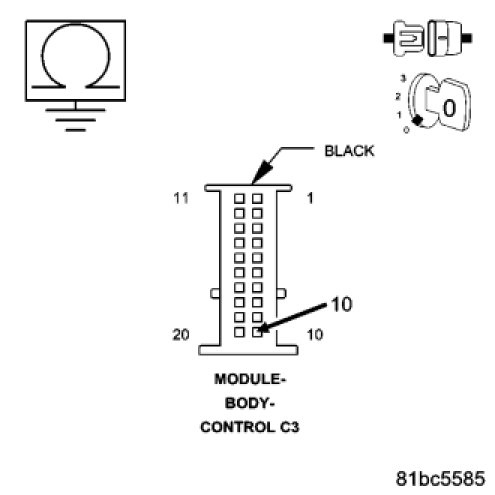

Disconnect the Body Control Module C3 connector.
Measure the resistance between ground and the Left Rear Vent Window Driver (Open) circuit.
Is the resistance below 5000.0 ohms?

Yes

- Repair the Left Rear Vent Window Driver (Open) circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests.

No

- Go To 4

4. LEFT REAR VENT WINDOW DRIVER (CLOSE) CIRCUIT SHORT TO GROUND

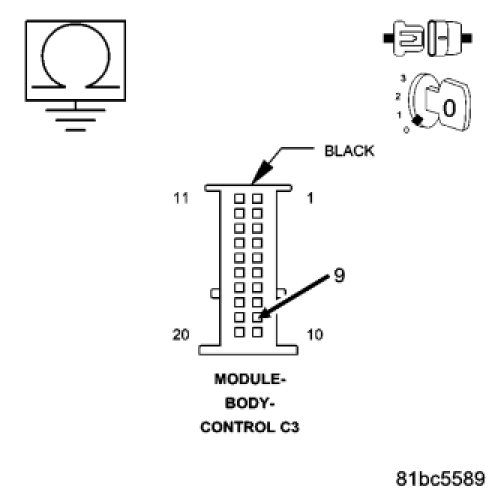

Measure the resistance between ground and the Left Rear Vent Window Driver (Close) circuit.
Is the resistance below 5000.0 ohms?

Yes

- Repair the Left Rear Vent Window Driver (Close) circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Go To 5

5. LEFT REAR VENT WINDOW DRIVER (CLOSE) CIRCUIT SHORTED TO THE LEFT REAR VENT WINDOW DRIVER (OPEN) CIRCUIT

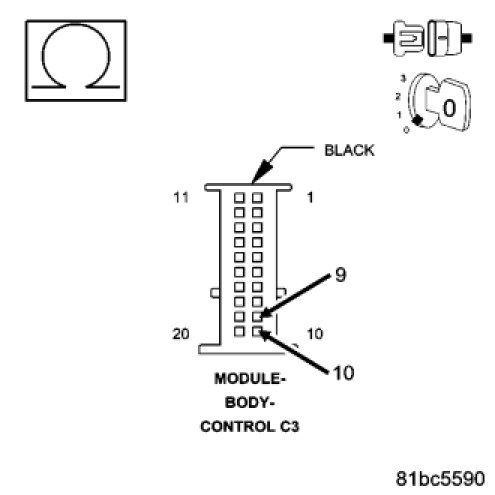

Measure the resistance between the Left Rear Vent Window Driver (Close) circuit and the Left Rear Vent Window Driver (open) circuit.
Is the resistance below 5000.0 ohms?

Yes

- Repair the Left Rear Vent Window Driver (Close) circuit for a shot to the Left Rear Vent Window Driver (open) circuit
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Replace the Body Control Module.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.
