HVAC

9025-YELLOW LED CIRCUIT HIGH (ZHZ)

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
Continuously.

- Set Condition:

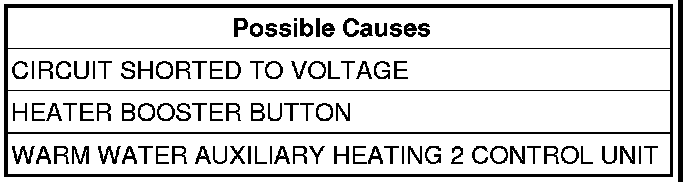

The Warm Water Auxiliary Heating 2 Control Unit detects circuit shorted to voltage.





Diagnostic Test

1. DTC IS ACTIVE
Turn the ignition on.
With the scan tool, read DTC's.
Is this DTC active?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

2. HEATER BOOSTER BUTTON
Turn the ignition off.
Replace the Heater Booster Button with a known good Heater Booster Button.
Turn the ignition on.
With the scan tool, read DTC's.
Is this DTC active?

Yes

- Go To 3

No

- Replace the Heater Booster Button.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

3. CHECK FOR CIRCUIT SHORTED TO BATTERY
Turn the ignition off.
Disconnect the Warm Water Auxiliary Heating 2 Control Unit harness connector.
Disconnect the Heater Booster Button harness connector.
Turn the ignition on.
Measure the voltage of the related circuits between the Warm Water Auxiliary Heating 2 Control Unit harness connector and the Heater Booster Button harness connector.
Is there any voltage present?

Yes

- Repair the circuit shorted to voltage.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

No

- Replace the Warm Water Auxiliary Heating 2 Control Unit.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests
