Restraints

9014-DRIVERS SEAT BELT SENSE CIRCUIT PERFORMANCE

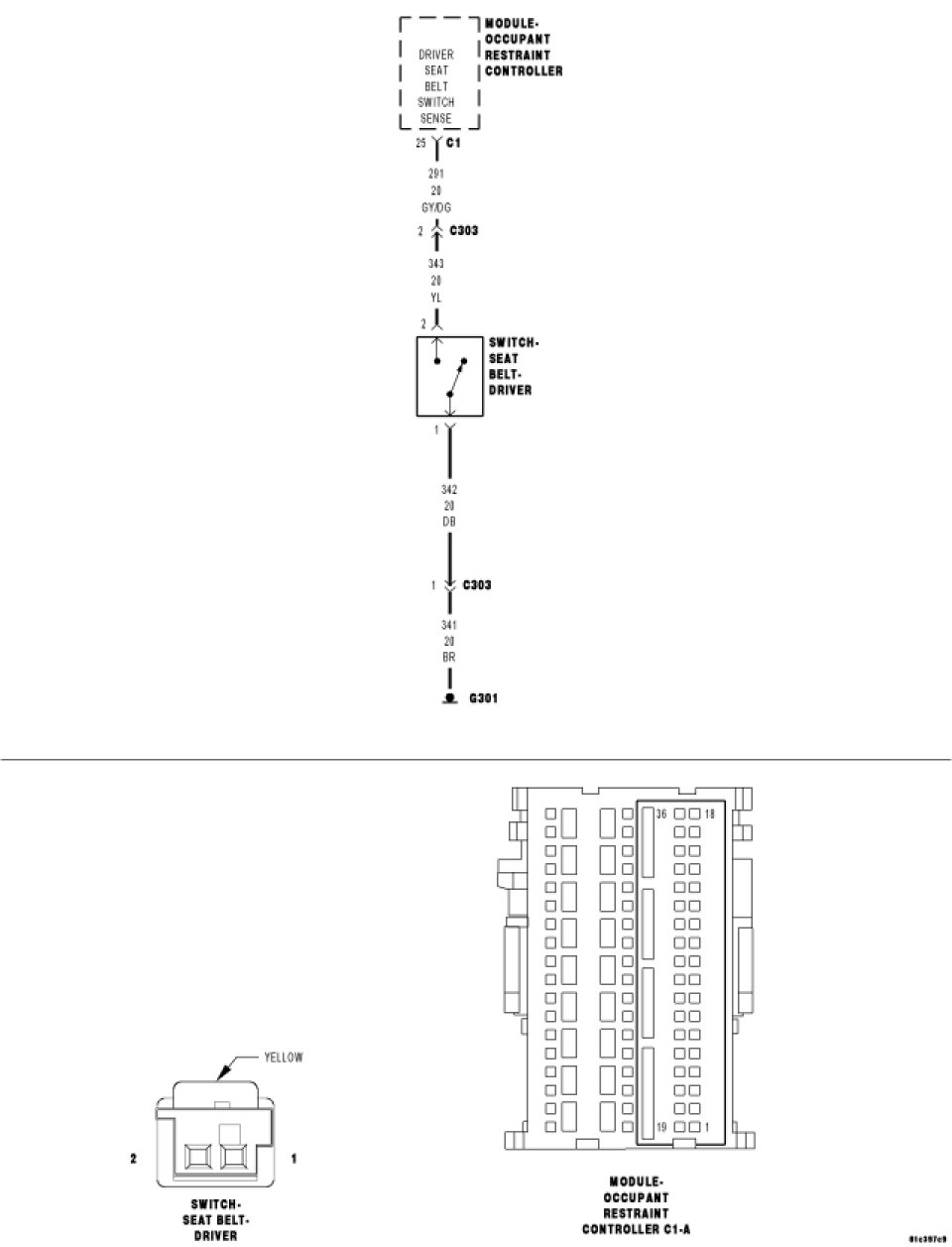

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With the ignition on.

- Set Condition:

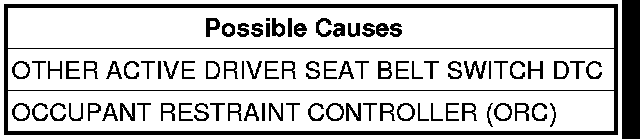

This code occurs only in combination with other active DTC's.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. .

Diagnostic Test

1. VERIFY OTHER ACTIVE DTC
NOTE: Ensure the battery is fully charged.

Turn the ignition on.
With the scan tool, perform a ORC reset.
With the scan tool, read the active ORC DTC.
Does the scan tool display any other Driver Seat Belt Switch active DTCs?

Yes

- Diagnose and repair the DTC's.
No

- Replace the Occupant Restraint Controller (ORC).
- Perform *RESTRAINT VERIFICATION TEST. Verification Tests
