HVAC

9003-REFRIGERANT PRESSURE SENSOR 2 CIRCUIT LOW

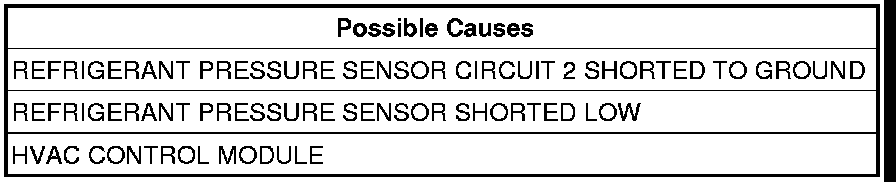

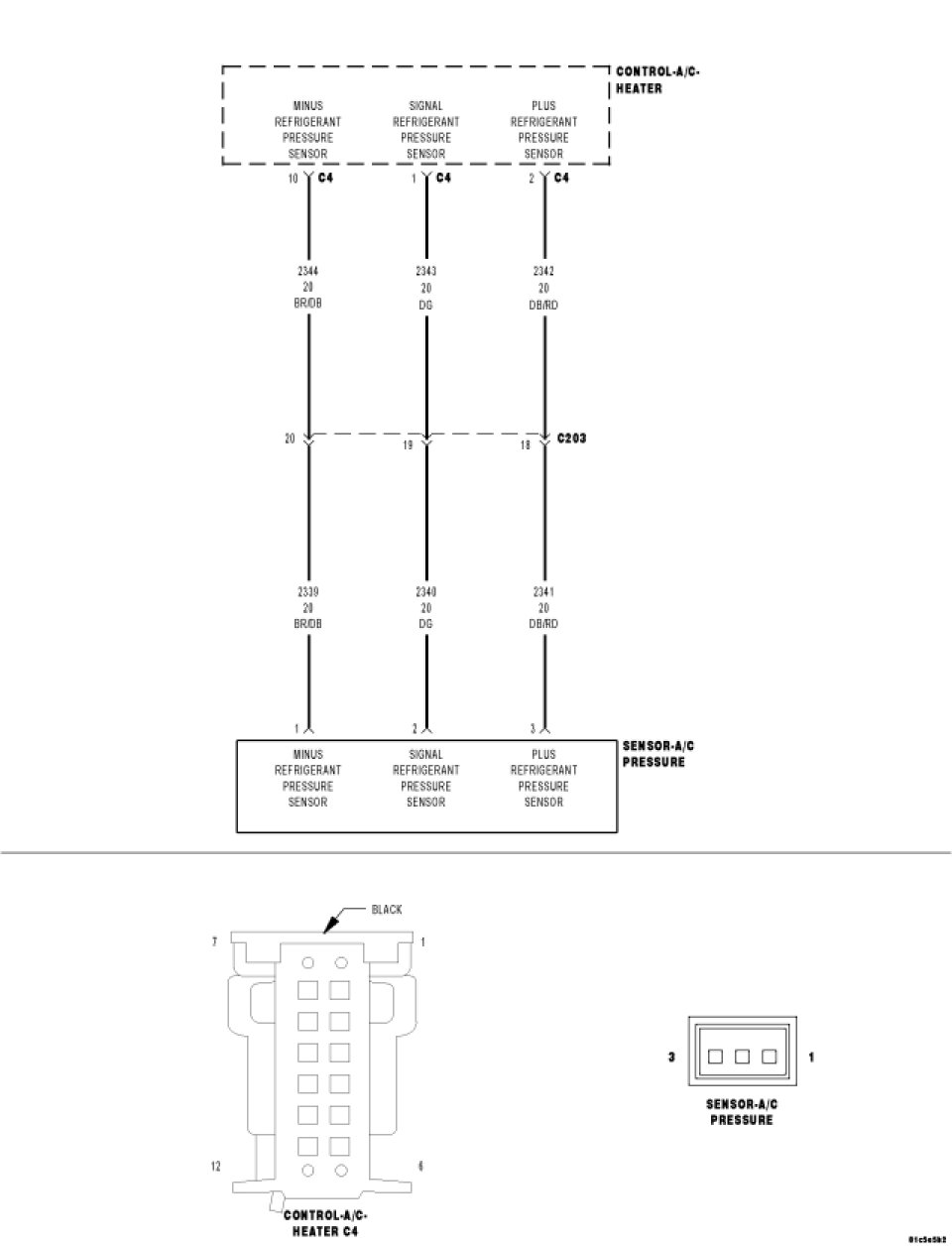

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
Whenever the HVAC module is awake.

- Set Condition:
When the Refrigerant Pressure Sensor Circuit 2 is shorted low.





Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION
With the scan tool, record and erase HVAC DTC's
Change the temperature on the HVAC Control Module.
Turn the ignition on and wait 30 seconds.
With the scan tool, read DTC's.
Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

2. REFRIGERANT PRESSURE SENSOR SHORTED LOW
Disconnect the Refrigerant Pressure Sensor harness connector.
With the scan tool, record and erase DTC's
Cycle the ignition from on to off three times.
Turn the ignition on.
With the scan tool, read DTC's.
Does the scan tool display this DTC as active?

No

- Replace the Refrigerant Pressure Sensor.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

Yes

- Go To 3

3. REFRIGERANT PRESSURE SENSOR 2 CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Disconnect the HVAC Control Module harness connectors.
Measure the resistance between Ground and the Refrigerant Pressure Sensor 2 circuit.
Does the ohm meter read open circuit?

Yes

- Replace the HVAC Control Module.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

No

- Repair the Refrigerant Pressure Sensor 2 circuit for short to ground.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests
