Lamps/Lighting - Exterior

9001-LEFT PARKING LAMP CONTROL CIRCUIT HIGH-BCM

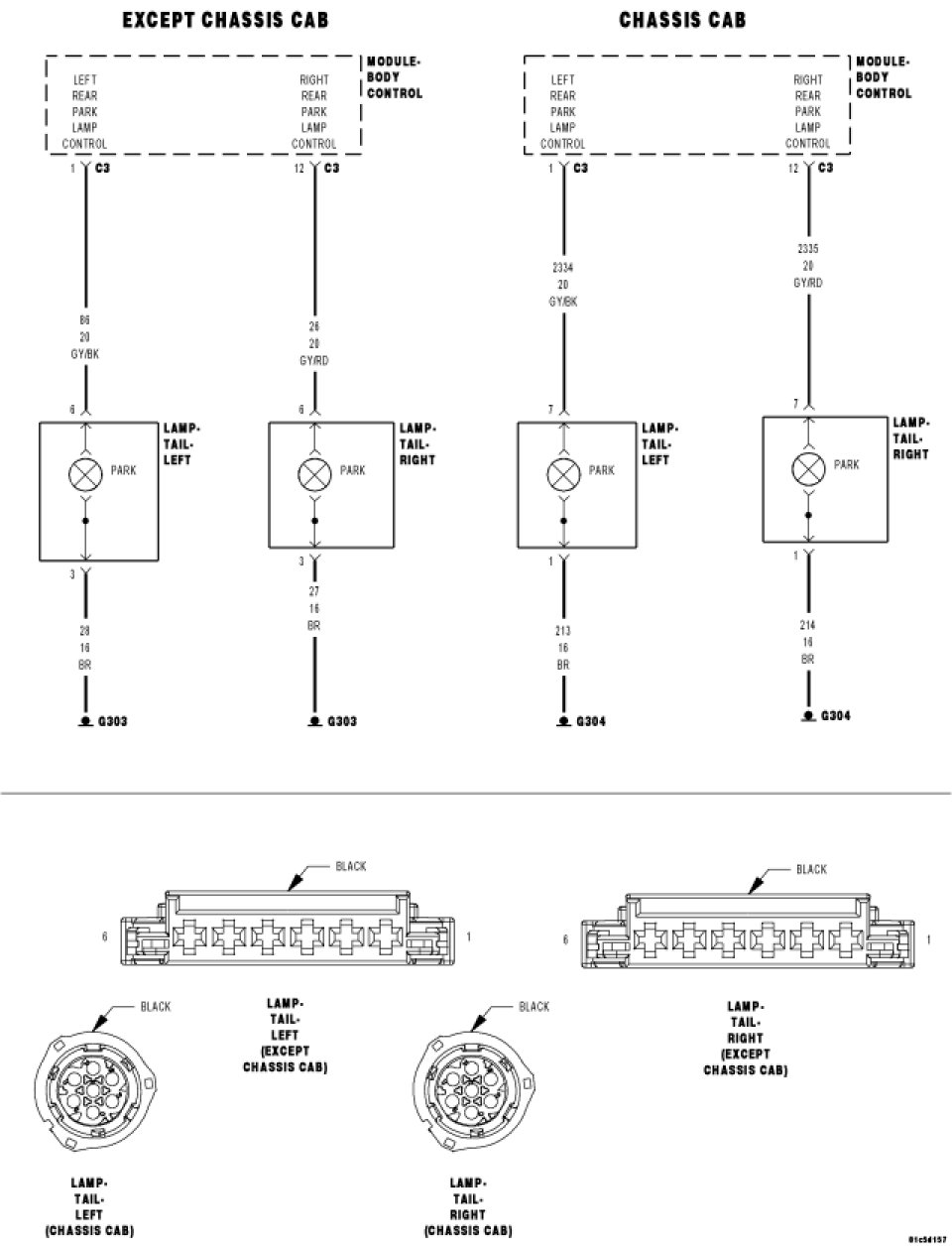

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
- With the Park Lamps activated.
- Set Condition:
- When the BCM detects a HIGH condition.





Diagnostic Test

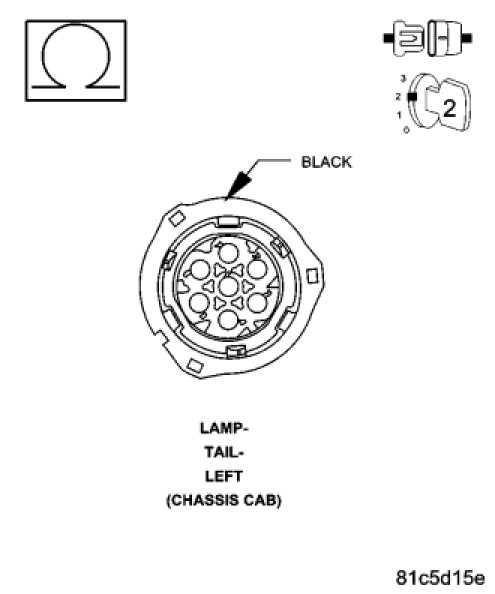

1. INTEGRATED POWER MODULE




Turn the ignition off.
Replace the Park Lamp relay with and known good relay.
With the Scan Tool, clear all BCM DTC's.
Turn the Park Lamps ON then OFF.
With the Scan Tool, read the DTC's.
Does the Scan Tool read: 9001-LEFT PARKING LAMP CONTROL CIRCUIT HIGH-BCM?

Yes

- Replace the Body Control Module.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests

No

- Test complete.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests
