8000 - 8999: 8024

8024-POWER SLIDING DOOR - HANDLE SWITCH STUCK - PSD





For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Whenever the Power Sliding Door Module (PSDM) is awake.

- Set Condition:
When the PSDM senses voltage that is out of range on the Sliding Door Handle Switch Sense circuit for longer than 10 seconds, this code will set.





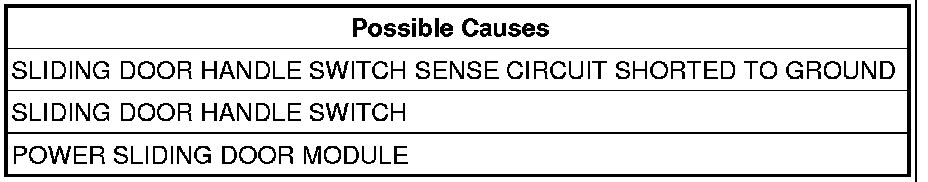

Diagnostic Test

1. DTC PRESENT
With the scan tool, record DTCs.
Erase DTCs
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the Power Sliding Door several times from the Sliding Door Handle Switch.
With the scan tool, read DTCs.
Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- Using the wiring diagram/schematic as a guide, inspect the wiring and connectors for an intermittent condition.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

Diagnostic Test

2. SLIDING DOOR HANDLE SWITCH STUCK




Disconnect the Sliding Door Handle Switch harness connector.
Erase DTCs
Turn the ignition off, wait 10 seconds, then turn the ignition on.
With the scan tool, read DTCs.
Does the scan tool display this DTC as active?

Yes

- Go To 3

No

- Replace the Sliding Door Handle Switch (latch) assembly.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

3. CHECK THE SLIDING DOOR HANDLE SWITCH SENSE CIRCUIT FOR A SHORT TO GROUND




Disconnect the PSDM C4 harness connector.
Measure the resistance between ground and the Sliding Door Handle Switch Sense circuit.
Is the resistance below 10,000 ohms?

Yes

- Repair the Sliding Door Handle Switch Sense circuit for a partial short to ground.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Replace the Power Sliding Door Module.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.
