6814-IN PLANT MODE ACTIVE-ABS/ESP FUNCTION DISABLED

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With ignition on.

- Set Condition:
Conditions for running drive test not met.





Diagnostic Test

1. CHECK FOR A DTC 6814-IN PLANT MODE ACTIVE-ABS/ESP FUNCTION DISABLED
NOTE: This DTC must be active for the results of this test to be valid.

Turn the ignition on.
With the scan tool, read and record DTCs.
With the scan tool, read and record Freeze Frame information.
Perform ECU initialization with drive test. Refer to ABS VERIFICATION TEST.Verification Tests

NOTE: Drive test must be performed correctly for ECU to initialize.

With the scan tool, erase DTCs.
Start the engine.
With the scan tool, read and record DTCs.
Does the scan tool display: 6814-IN PLANT MODE ACTIVE-ABS/ESP FUNCTION DISABLED?

Yes

- Go To 2

No

- Refer to the ABS-INTERMITTENT CONDITION TEST.

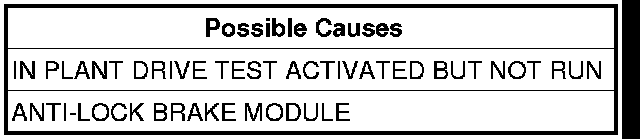

2. IN PLANT DRIVE TEST ACTIVATED BUT NOT RUN
With scan tool rerun drive test.
WAS DRIVE TEST COMPLETED?

Yes

- Replace the Anti-Lock Brake Module.
- Perform ABS VERIFICATION TEST. Verification Tests.

No

- Rerun drive test.
