Event 5110

EVENT 5110-ONE OR MORE ROTORS HAVE OVERHEATED

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
During the Drive Test.

- Set Condition:
If the Pressure Sensor fails to indicate a high enough pressure.





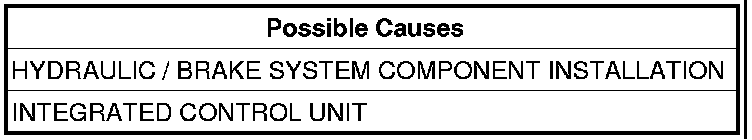

Diagnostic Test

1. CHECK FOR AN EVENT 5110-ONE OR MORE ROTORS HAVE OVERHEATED
NOTE: Allow brake rotors to cool down before continuing.

NOTE: This DTC must be active for the results of this test to be valid. If any other DTCs are present they must be repaired before continuing.

Turn the ignition on.
With the scan tool, read and record DTCs.
With the scan tool, read and record Freeze Frame information.
Start the engine.
Perform ECU initialization with drive test. Refer to ABS VERIFICATION TEST. Verification Tests.

NOTE: Apply brakes firmly when performing the drive test.

With the scan tool, read and record DTCs.
Does the scan tool display: EVENT 5110-ONE OR MORE ROTORS HAVE OVERHEATED?

Yes

- Go To 2

No

- Refer to the ABS-INTERMITTENT CONDITION TEST.

2. CHECK HYDRAULIC SYSTEM & BRAKE SYSTEM COMPONENT INSTALLATION & FUNCTION
Verify that the Anti-Lock Brakes Module and Hydraulic Control Unit are properly installed.
Verify that the hydraulic system is properly filled and bled.
Verify that the brake system components are installed and functioning properly.
Were any problems found?

Yes

- Repair as necessary.
- Perform ABS VERIFICATION TEST. Verification Tests.

No

- Replace the Anti-Lock Brake Module.
- Perform ABS VERIFICATION TEST. Verification Tests.
