No Response From ECM (Engine Control Module) - Diesel
*NO RESPONSE FROM ECM (ENGINE CONTROL MODULE) - DIESEL

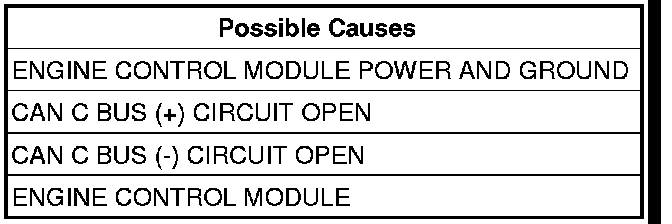

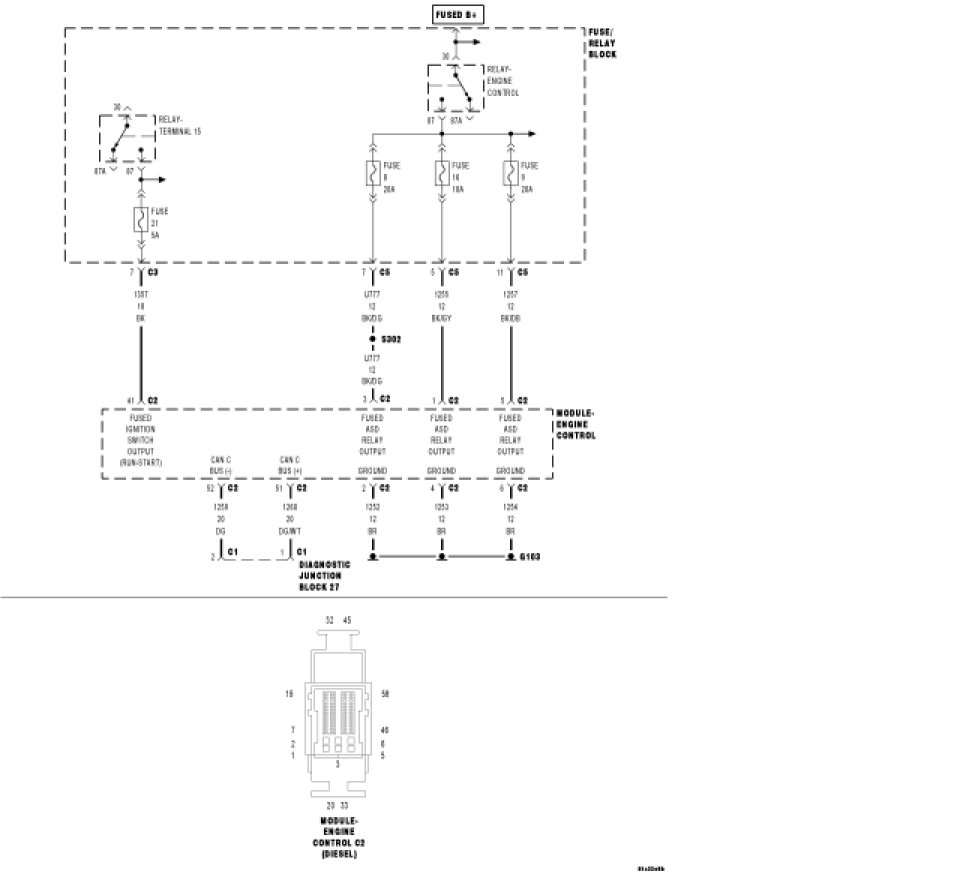

For a complete wiring diagram Consult Diagrams/Electrical.
Diagnostic Test
1. TEST FOR INTERMITTENT CONDITION
Turn the ignition on.
NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
With the scan tool, select ECU view.
NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.
NOTE: Check the FCM for any active CAN C hardware and any ignition related DTCs, perform DTCs before proceeding.
Does the scan tool display a red X next to the module?
Yes
- Go To 2
No
- The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
2. CHECK ECM POWER AND GROUND
Using the wiring diagrams as a guide check the ECM power and ground circuits.
Were any problems found?
Yes
- Repair as necessary.
- Perform the ECM VERIFICATION TEST. Verification Tests
No
- Go To 3
3. CAN C BUS (+) CIRCUIT OPEN
Turn the ignition off.
Disconnect the Ignition Switch C4 harness connector.
Disconnect the ECM C2 harness connector.

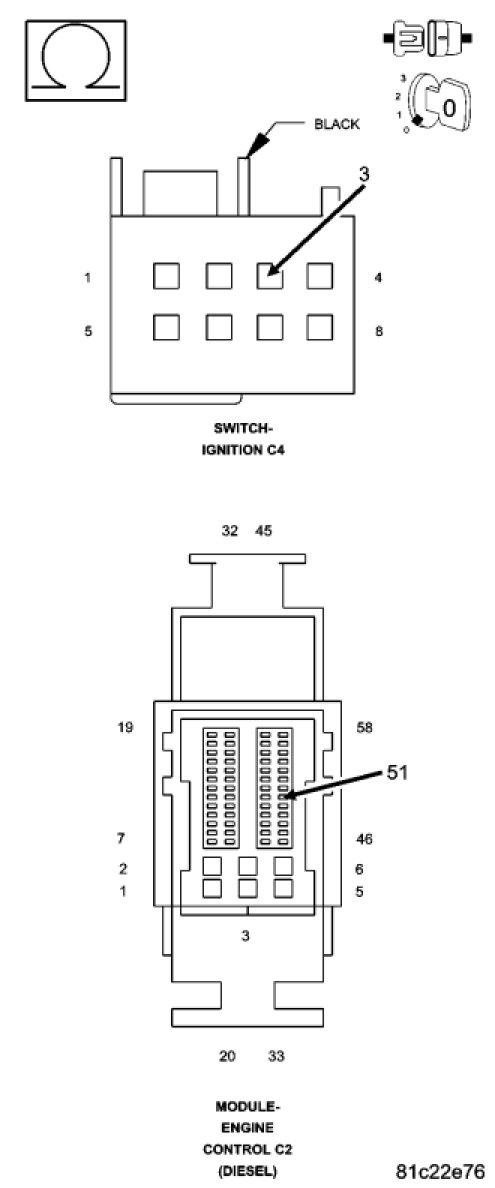

Measure the resistance of the CAN C Bus (+) circuit between the Ignition Switch connector and the ECM connector.
Is resistance below 5.0 ohms?
Yes
- Go To 4
No
- Repair the CAN C Bus (+) circuit for an open.
- Perform the ECM VERIFICATION TEST. Verification Tests
4. CAN C BUS (-) CIRCUIT OPEN

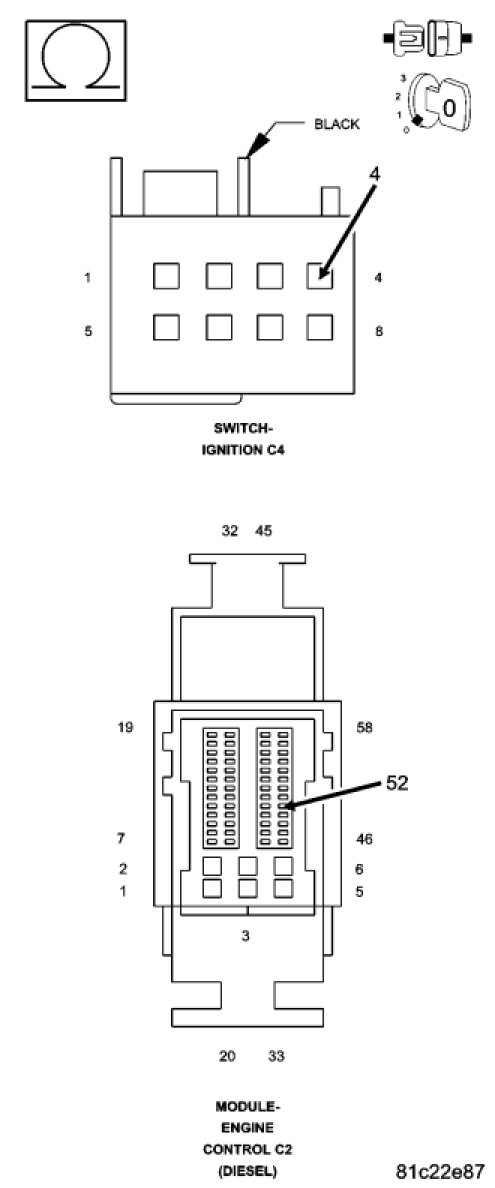

Measure the resistance of the CAN C Bus (-) circuit between the Ignition Switch connector and the ECM connector.
Is resistance below 5.0 ohms?
Yes
- Replace and program the Engine Control Module.
- Perform the ECM VERIFICATION TEST. Verification Tests
No
- Repair the CAN C Bus (-) circuit for an open.
- Perform the ECM VERIFICATION TEST. Verification Tests
