910E

910E-OUTPUT 14 CIRCUIT PERFORMANCE (PSM)

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With the Ignition Switch in the on position and the Programmable Special Module (PSM) is awake.

- Set Condition:
This code will set when the Output terminal or corresponding circuit is shorted to ground or overloaded for at least 10ms.





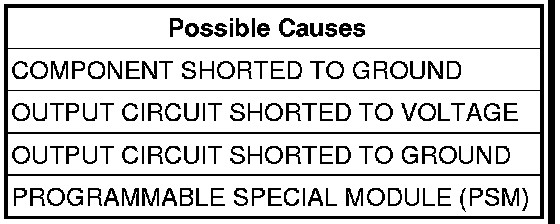

Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION
With the scan tool, record and erase DTC's
Turn the ignition on and activate Output.
With the scan tool, read DTC's.
Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

2. COMPONENT SHORTED TO GROUND
Turn the ignition off.
Disconnect the corresponding component harness connector.
Turn the ignition on and activate Output.
With the scan tool, read DTC's.
Does the scan tool display this DTC as active?

No

- Replace the corresponding component.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

Yes

- Go To 3

3. OUTPUT SHORTED TO VOLTAGE
Turn the ignition off.
Disconnect the corresponding PSM harness connector.
Turn the ignition on.
Measure for voltage on the Output circuit.
Is there any voltage present?

Yes

- Repair the Output circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests

Yes

- Go To 4

4. OUTPUT CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Measure the resistance of the Output circuit between the corresponding component and the corresponding PSM connector.
Does the ohm meter read open circuit?

Yes

- Repair the Output circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

No

- Replace the Programmable Special Module (PSM).
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests
